MODEL: M6DXR

M6DXR SPECIFICATIONS

ES-7833 Rev.14 Page 3/4

http://www.m-system.co.jp/

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

Approval:

UL/C-UL nonincendive Class I, Division 2,

Groups A, B, C, and D

(ANSI/ISA-12.12.01, CAN/CSA-C22.2 No.213)

UL/C-UL general safety requirements

(UL 61010-1, CAN/CSA-C22.2 No.61010-1)

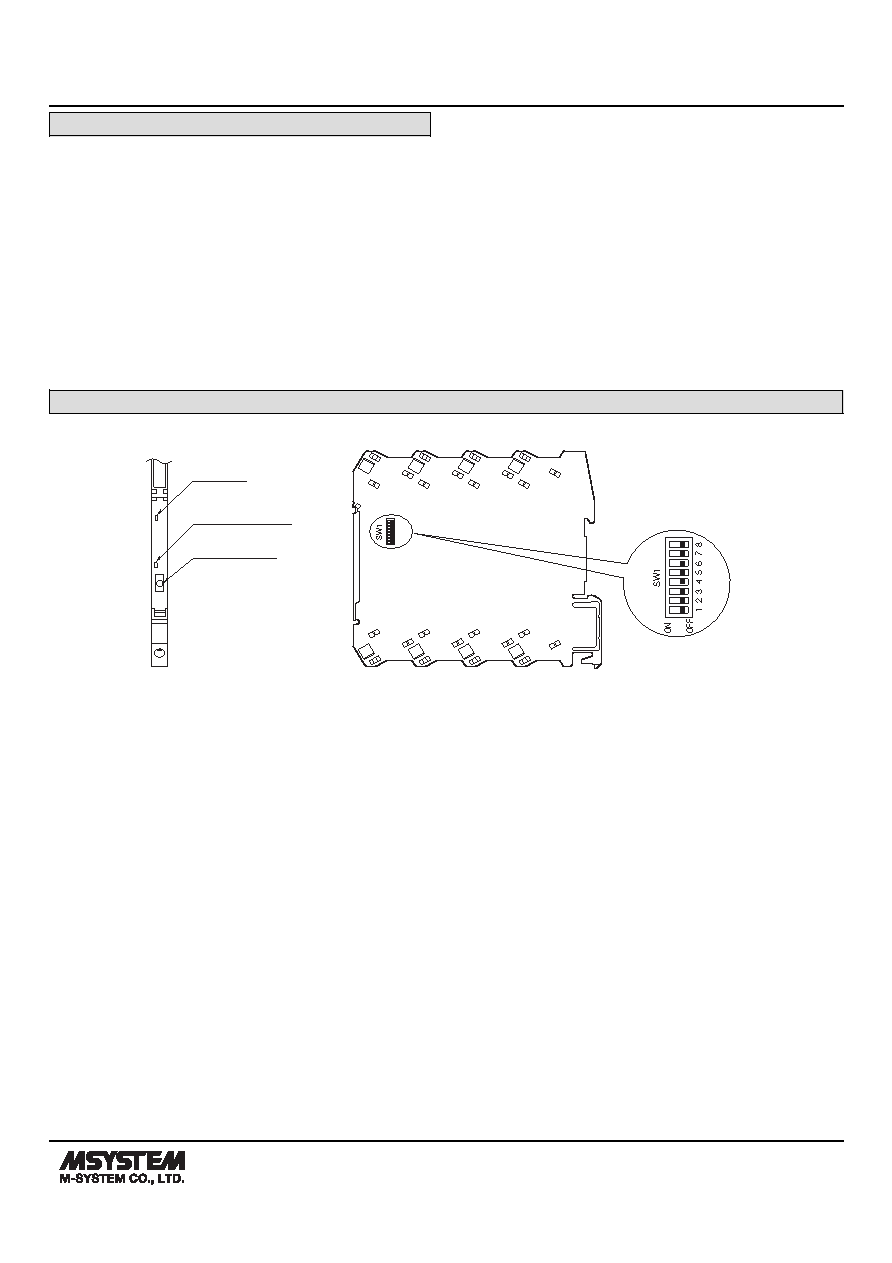

EXTERNAL VIEW

■ FRONT VIEW (with the cover open)

■ SIDE VIEW

5

6

7

8

1

2

3

4

Output Range Selectors

Status Indicator LED

Power LED

Configurator Jack

The DIP switch setting is required to select output types

before setting a precise output range using PC Configurator

Software (model: M6CFG).

Refer to the instruction manual for detailed procedures.
