MODEL: HAS

HAS SPECIFICATIONS

ES-3481 Rev.11 Page 3/4

http://www.m-system.co.jp/

EXTERNAL VIEW

Single Alarm or

Dual High Setpoint Adj.

Dual Low Setpoint Adj.*

Single or Dual High LED

Dual Low LED*

*Not provided for Single Alarm.

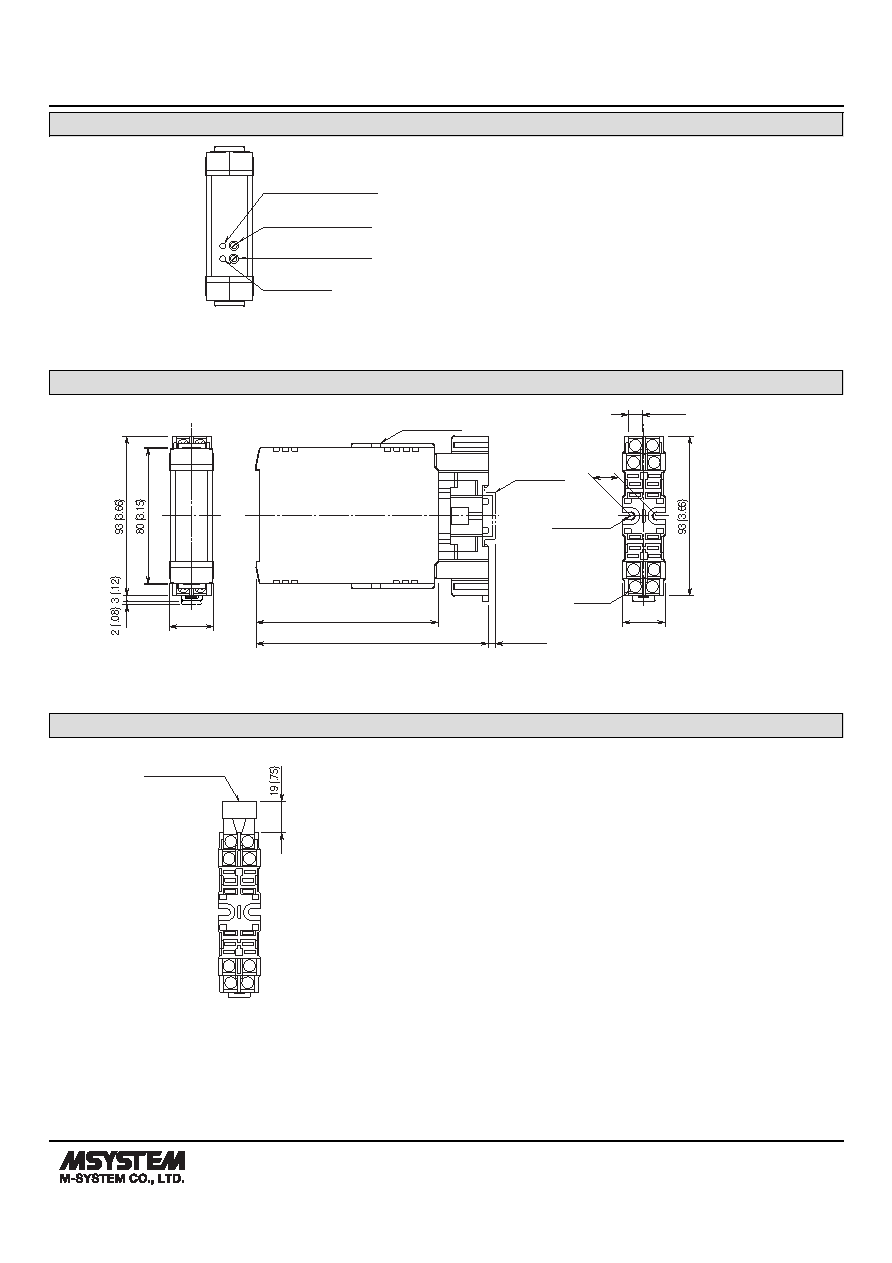

EXTERNAL DIMENSIONS unit: mm (inch)

1

2

3

4

7

6

8

5

26 (1.02)

107 (4.21)

26 (1.02)

15

(.59)

2–4.5 (.18)

HOLE

15 (.59) deep

DIN RAIL

35mm wide

[3.3 (.13)]

8–M3.5

SCREW

CLAMP

(top & bottom)

137 (5.39)

•When mounting, no extra space is needed between units.

7.8 (.31)

TERMINAL ASSIGNMENTS unit: mm (inch)

3

4

7

6

8

5

1

2

INPUT RESISTOR

(model: REM)

Input shunt resistor attached

for current input.
