ESD2511CDN datasheet(1/4 Pages) LEIDITECH

номер детали	ESD2511CDN

подробное описание детали	LOW VOLTAGE BIDIRECTIONAL TVS DIODE

PDF	4 Pages

Scroll/Zoom	100%

производитель	LEIDITECH [Shanghai Leiditech Electronic Technology Co., Ltd]

домашняя страница	http://www.leiditech.com

Logo

1 / 4 page

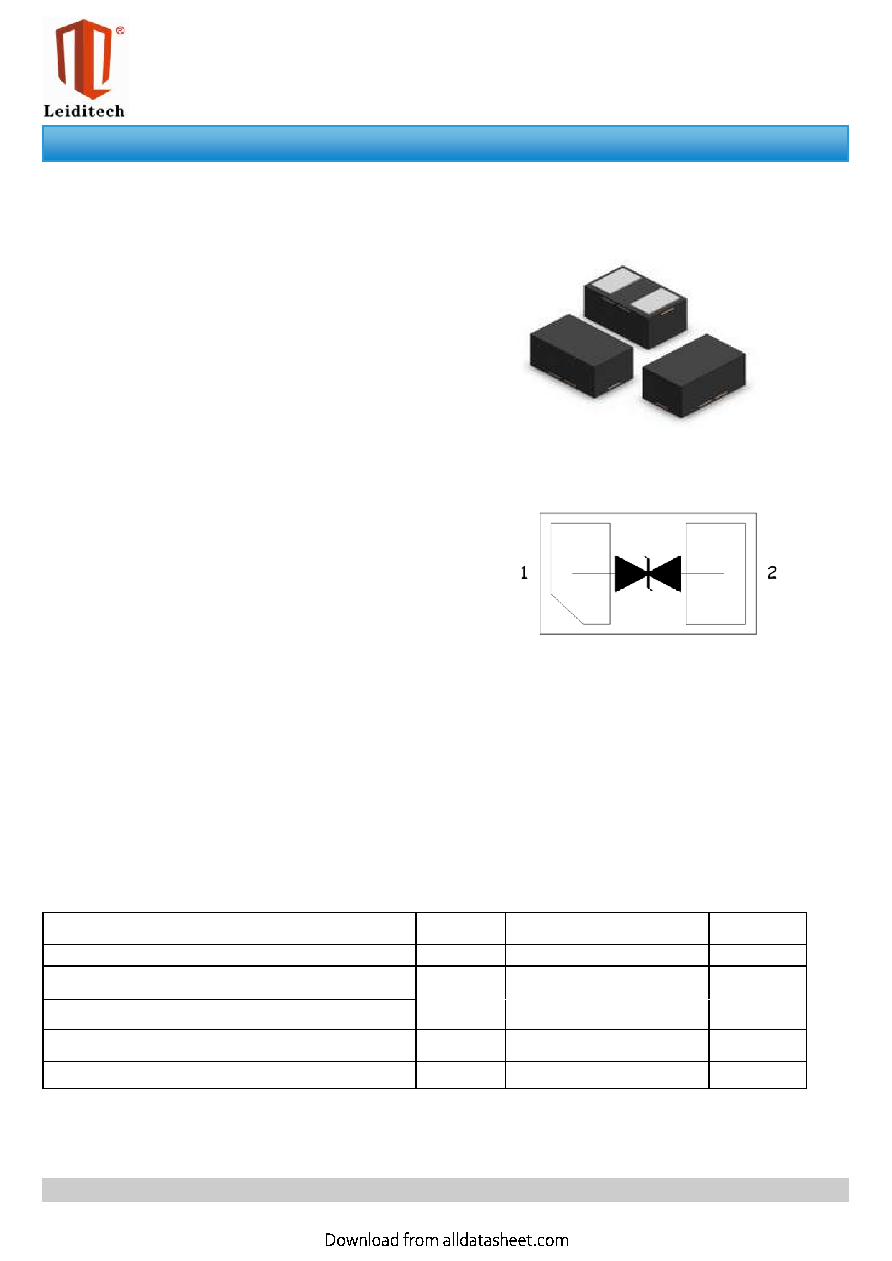

ESD2511CDN

Features

●

Ultra low leakage: nA level

●

Operating voltage: 2.5V

●

Low clamping voltage

●

Complies with following standards:

– IEC 61000-4-2 (ESD) immunity test

Air discharge: ±30kV

Contact discharge: ±30kV

– IEC61000-4-4 (EFT) 40A (5/50ns)

– IEC61000-4-5 (Lightning) 12A (8/20μs)

●

RoHS Compliant

Applications

●

USB 2.0 power and data line

●

Set-top box and digital TV

●

Digital video interface (DVI)

●

Notebook Computers

●

SIM Ports

●

10/100 Ethernet

Dimensions DFN1006

Pin Configuration

Mechanical Characteristics

●

Package: DFN1006

●

Lead Finish: Lead Free

●

UL Flammability Classification Rating 94V-0

●

Quantity Per Reel:10,000pcs

●

Reel Size:7 inch

Rev : 01.06.2014

1/4

www.leiditech.com

Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)

Parameter

Symbol

Value

Unit

Peak Pulse Power (8/20µs)

Ppp

100

W

ESD per IEC 61000−4−2 (Air)

VESD

± 30

Kv

ESD per IEC 61000−4−2 (Contact)

± 30

Operating Temperature Range

TJ

-55 to +150

℃

Storage Temperature Range

TSTJ

-55 to +150

℃

LOW VOLTAGE BIDIRECTIONAL TVS DIODE
