Data Sheet

ADBMS1818

THEORY OF OPERATION

analog.com

Rev. 0 | 47 of 89

Using a Single ADBMS1818

When only one ADBMS1818 is needed, the device can be used as

a single (non daisy-chained) device if the second isoSPI port (Port

B) is properly biased and terminated, as shown in Figure 81 and

Figure 82. ICMP must not be tied to GND but can be tied directly to

IBIAS. A bias resistance (2 kΩ to 20 kΩ) is required for IBIAS. Do

not tie IBIAS directly to VREG or V–. Finally, IPB and IMB must be

terminated into a 100 Ω resistor (not tied to VREG or V–).

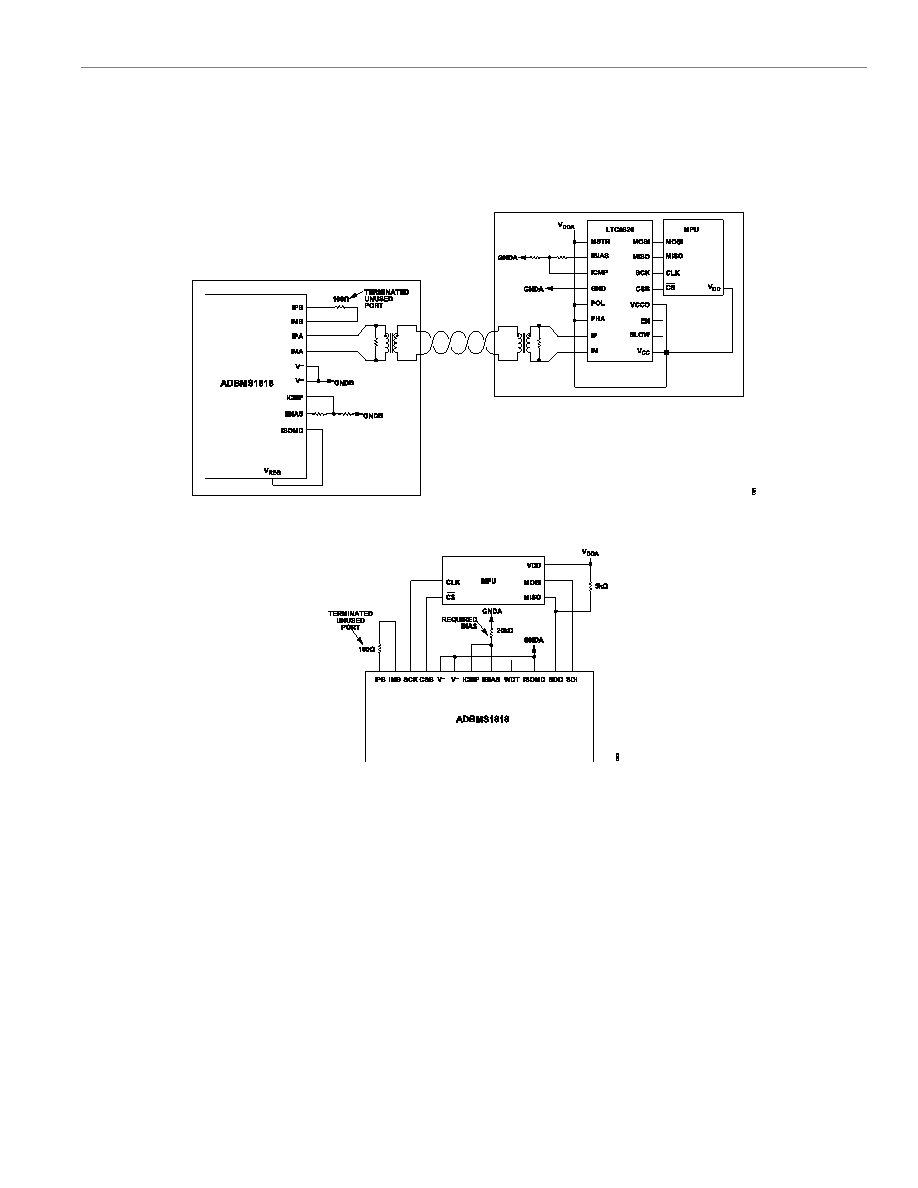

Figure 81. Single Device Using 2-Wire Port A

Figure 82. Single Device Using 4-Wire Port A
