Product data sheet

Characteristics

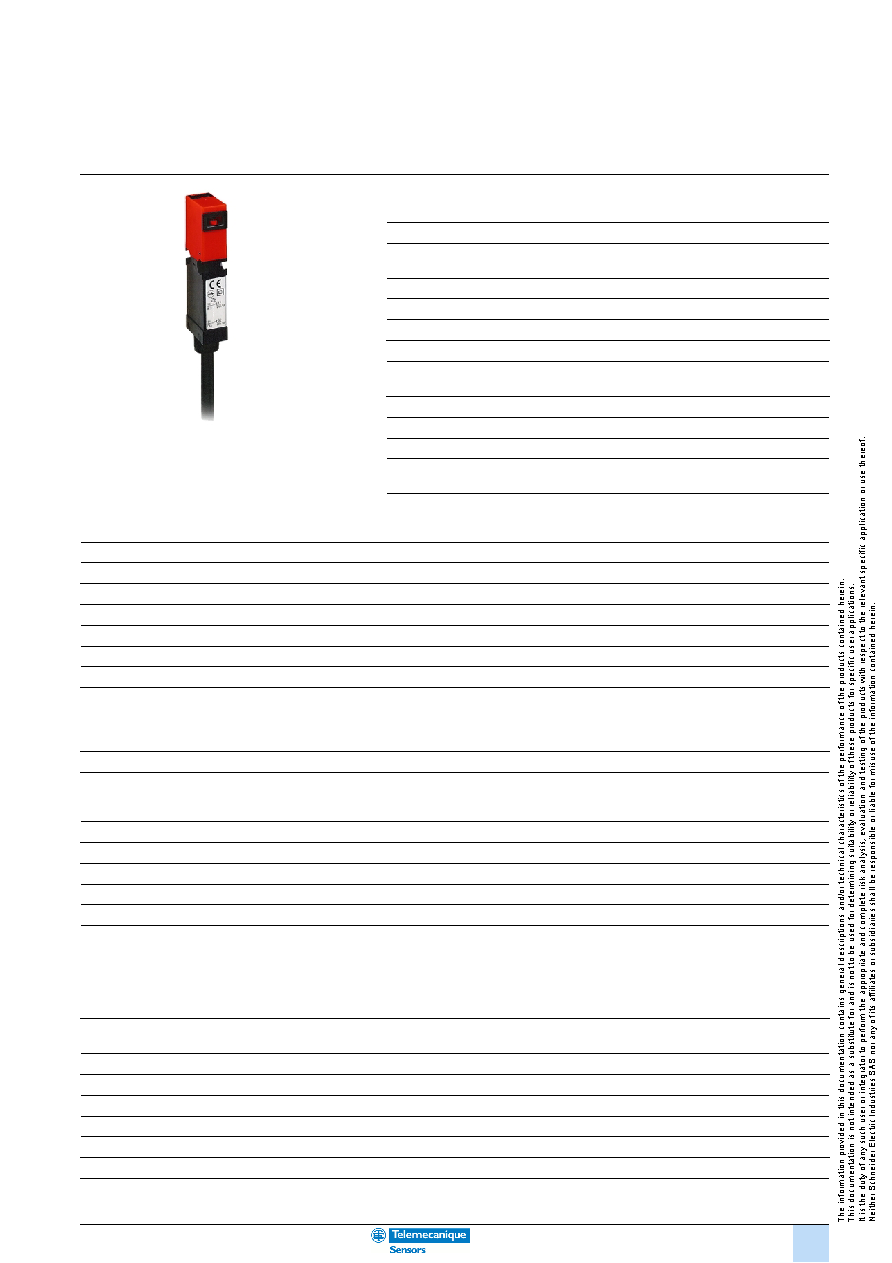

XCSMP79L2

plastic safety switch XCSMP - 1 NC + 1 NC -

slow break - pre-cabled 2 m

Main

Range of product

Preventa Safety detection

Product or component

type

Safety switch

Component name

XCSMP

Design

Miniature

Material

Plastic

Head type

Key operated fixed head

Contacts type and

composition

2 NC

Contact operation

Slow-break, simultaneous

Electrical connection

Pre-cabled

Number of poles

2

Locking options

description

Without locking of actuator

Complementary

Insulation

Double insulated

Cable length

2 m

Cable composition

4 x 0.5 mm²

Positive opening

With NC contact

Mechanical durability

1000000 cycles

Minimum actuation speed

0.05 m/s

Maximum actuation speed

1.5 m/s

[Ie] rated operational current

0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1

0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1

0.75 A at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1

1.5 A at 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1

[Ithe] conventional enclosed thermal current

2.5 A

[Ui] rated insulation voltage

300 V conforming to UL 508

500 V conforming to EN/IEC 60947-1

300 V conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

EN/IEC 60947-5-1 6 kV

Short-circuit protection

10 A cartridge fuse type gG (gl)

Actuator forcible withdrawal rtc

8 N

Minimum actuator force for extraction

8 N

Maximum operating rate

20 cyc/mn for maximum durability

Safety level

Can reach category 4 with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach PL = e with the appropriate monitoring system and correctly wired

conforming to EN/ISO 13849-1

Can reach SIL 3 with the appropriate monitoring system and correctly wired

conforming to EN/IEC 61508

Safety reliability data

B10d = 5000000 value given for a life time of 20 years limited by mechanical or

contact wear

Body material

PA (polyamide)

Head material

PA (polyamide)

Depth

30 mm

Height

87 mm

Width

15 mm

Net weight

0.11 kg
