Product data sheet

Characteristics

8502SCO2V02SX10

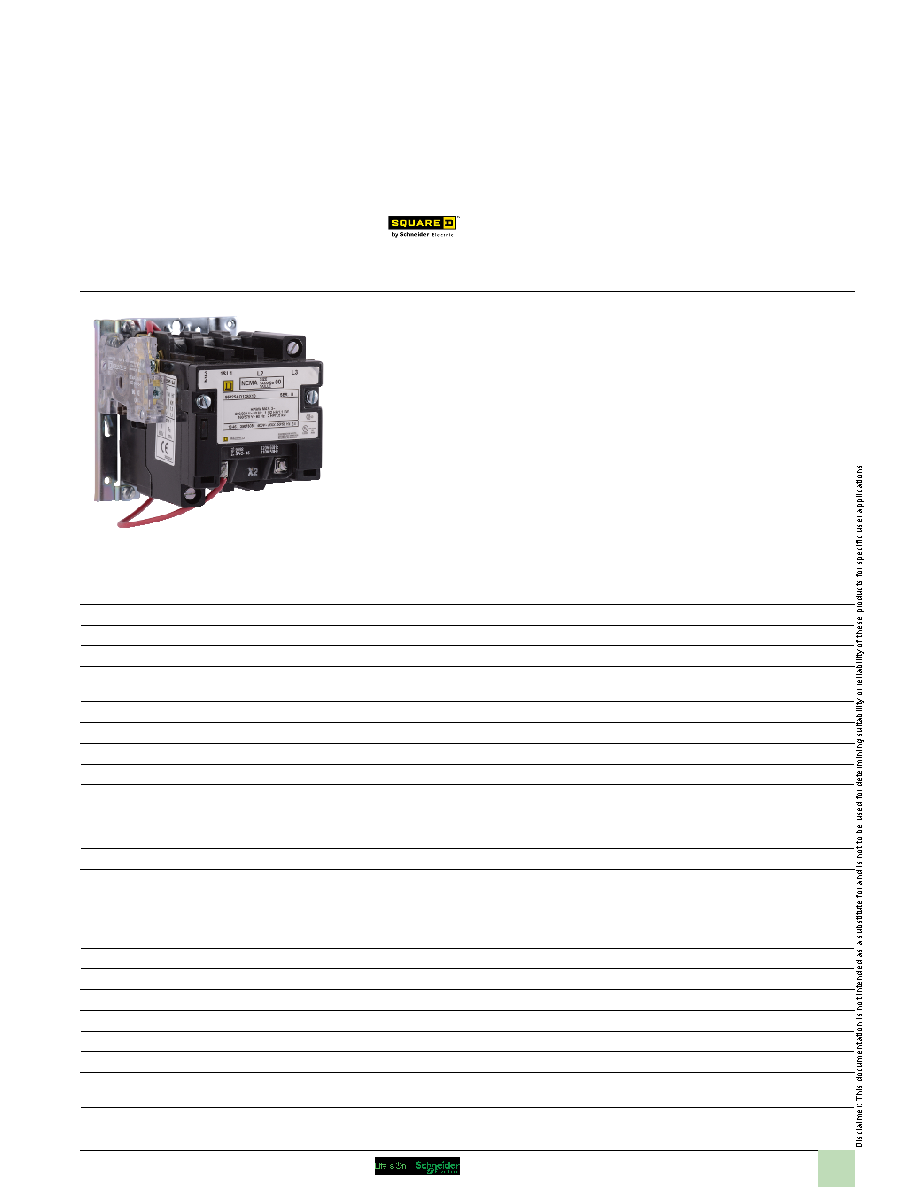

NEMA Contactor, Type S, nonreversing, Size 1,

27A, 10 HP at 575 VAC, 3 phase, up to 100 kA, 3

pole, 120 VAC coil, open

Product availability : Non-Stock - Not normally stocked in distribution facility

Main

Product Type

Contactor

Type

8502S

Control Circuit Type

Separate control circuit

Control Circuit Voltage

120 V AC 60 Hz

110 V AC 50 Hz

Contactor Type

Non-reversing

Current Rating

27 A

Number of Poles

3P

Phase

3 phase

Horsepower Rating

7.5 HP 200 V AC

7.5 HP 230 V AC

10 HP 460 V AC

10 HP 575 V AC

Maximum Voltage Rating

600 V AC

SCCR

Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC

Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Control Units

No control units

Pilot Light

No indicator

Auxiliary Contacts

1 NO

Control Circuit Fusing

Fuse not supplied

Electrical Connection

Screw clamp terminals

Enclosure Type

Not rated (open device)

Certifications

UL listed file E78351 CCN NLDX

CSA
