TLP183

1

Photocouplers Infrared LED & Photo Transistor

TLP183

TLP183

TLP183

TLP183

Start of commercial production

2013-09

1.

1.

1.

1. Applications

Applications

Applications

Applications

•

Office Equipment

•

Programmable Logic Controllers (PLCs)

•

AC Adapters

•

I/O Interface Boards

2.

2.

2.

2. General

General

General

General

TLP183 is a low input type phototransistor coupler that consists of a photo transistor optically coupled to an

infrared LED in a SO6 package.

TLP183 is smaller than DIP package, it's suitable for high density surface mounting applications such as

programmable controllers.

3.

3.

3.

3. Features

Features

Features

Features

(1)

Collector-emitter voltage: 80 V (min)

(2)

(3)

Isolation voltage: 3750 Vrms (min)

(4)

Operating temperature: -55 to 125 

(5)

Safety standards

UL-recognized: UL 1577, File No.E67349

cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349

VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)

(Note 1)

(Note 1)

(Note 1)

CQC-approved: GB4943.1, GB8898 Thailand Factory

Note 1: When a VDE approved type is needed, please designate the Option (V4)

Option (V4)

Option (V4)

Option (V4).

4.

4.

4.

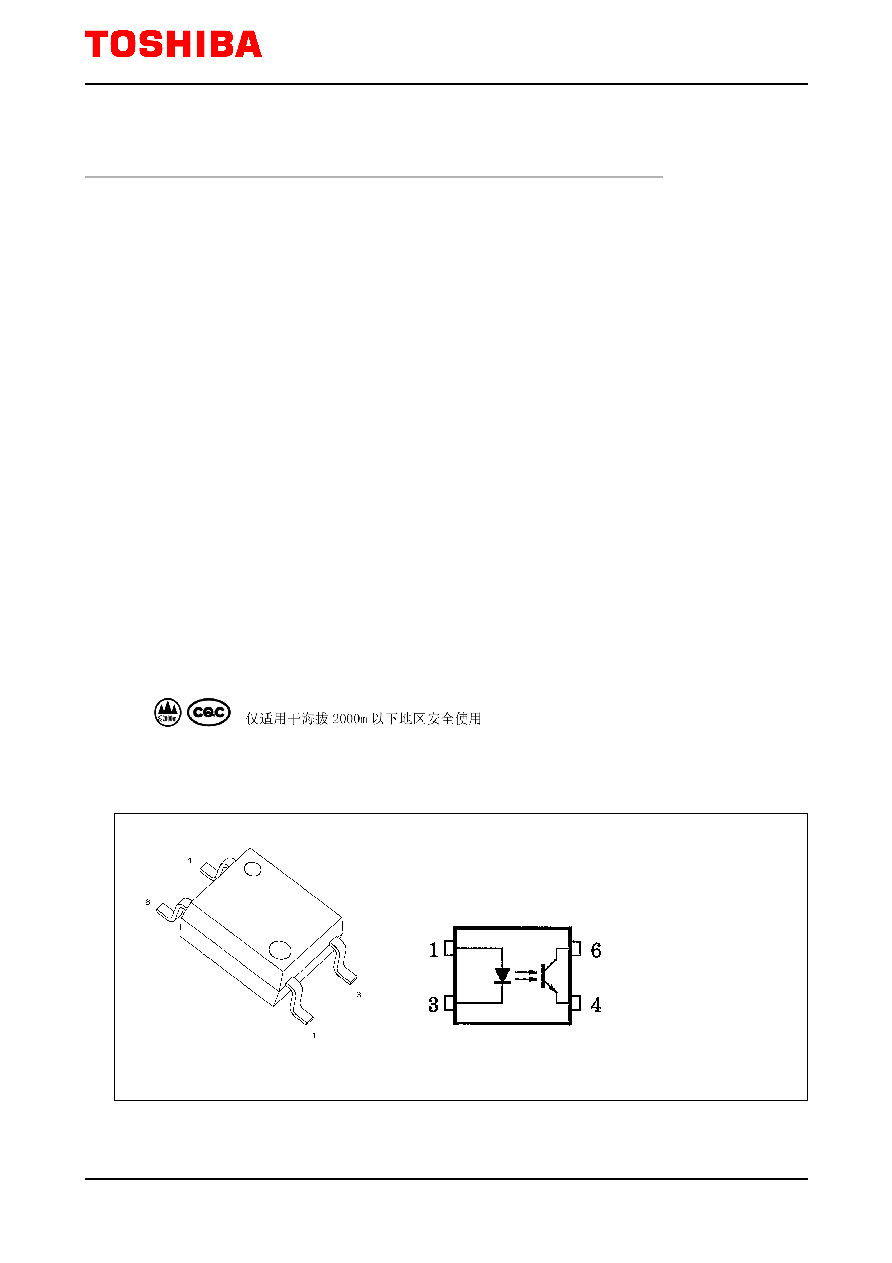

4. Packaging and Pin Assignment

Packaging and Pin Assignment

Packaging and Pin Assignment

Packaging and Pin Assignment

11-4M1S

1: Anode

3: Cathode

4: Emitter

6: Collector

2019-11-18

Rev.7.0

©2016-2019

Toshiba Electronic Devices & Storage Corporation
