Digital Controller

E5AK/E5EK

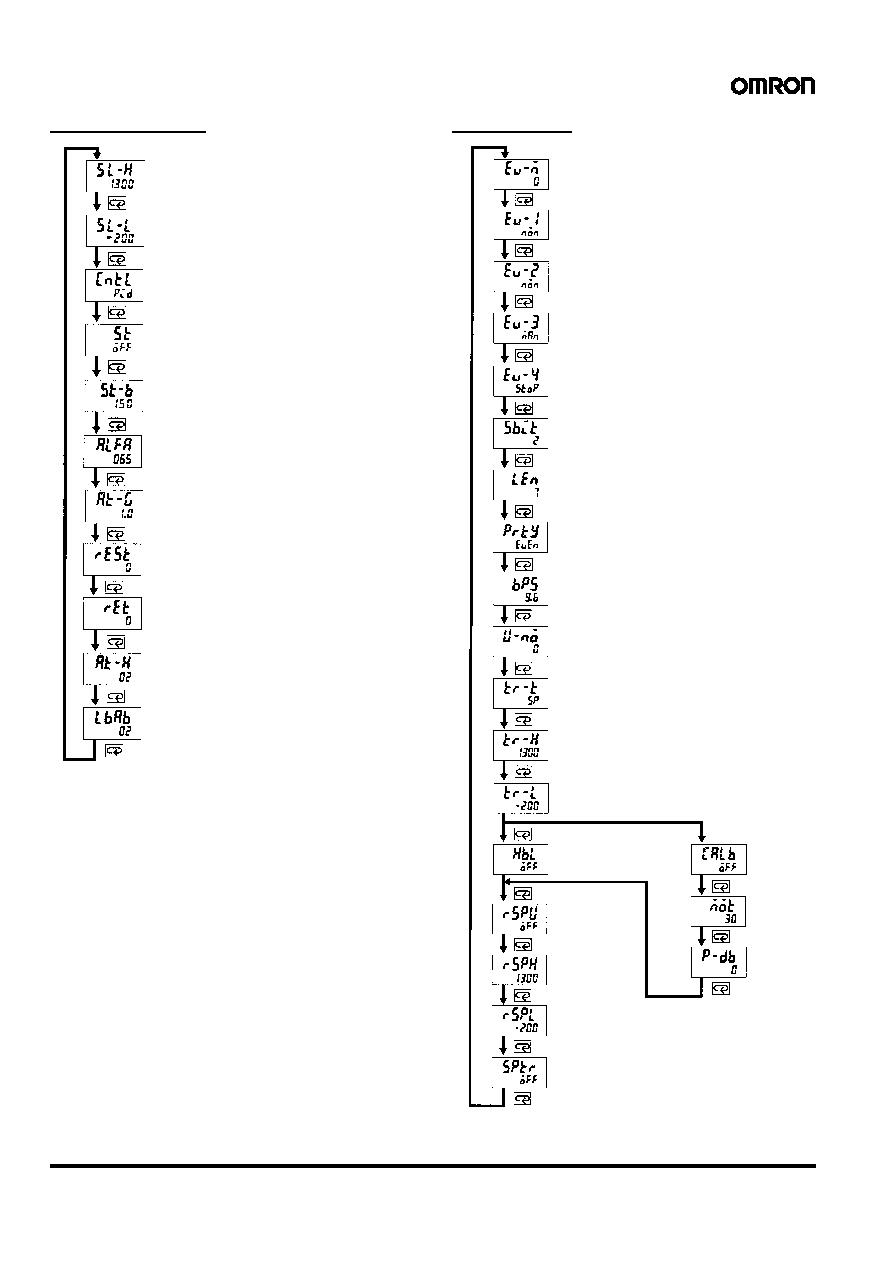

Expansion Mode

Option Mode

Set point

Upper Limit

Set point

Lower Limit

PID/ON/OFF

Unavailable to the

@K-PRR2.

Available if the Controller in standard control and

advanced PID control has a temperature input.

Unavailable to the E5

@K-PRR2

ST Stable Range

Available if the Controller in standard control and advanced

PID control with the ST set to OFF has a temperature input.

Unavailable to the E5

@K-PRR2

Available if the Controller is in advanced

PID control with the ST set to OFF.

AT Calculated Gain

Available if the Controller is in advanced

PID control with the ST set to OFF.

Standby Sequence

Reset Method

Automatic Return

of Display Mode

AT Hysteresis

Available if the Controller is in advanced

PID control with the ST set to OFF.

LBA Detection

WidthAvailable only when the LBA (loop break

alarm) function is assigned.

Unavailable to the E5

@K-PRR2.

For E5

@K-PRR2

Travel time

HBA latch

Remote SP enable

Multi-SP Function

Available for the event input functions.

Event Input Assignment 1

Available for the event input function.

Event Input Assignment 2

Available for the event input function.

Event Input Assignment 3

Available for the event input function.

Event Input Assignment 4

Available for the event input function.

Communication Stop Bit

Used when the communications function is being used.

Communication Data Length

Used when the communications function is being used.

Communication Parity

Set when the communications function is being used.

Communication Baud Rate

Set when the communications function is being used.

Communication Unit No.

Set when the communications function is being used.

Transfer Output Type

Set when the transfer output function is being used.

Transfer Output Upper Limit

Set when the transfer output function is being used.

Transfer Output Lower Limit

Set when the transfer output function is being used.

Motor

calibration

PV dead

band

Remote SP Upper

Limit

(Available when the

remote SP is enable.)

Remote SP Lower Limit

(Available when the remote SP is enable.)

SP tracking

(Available when the remote SP is enable.)
