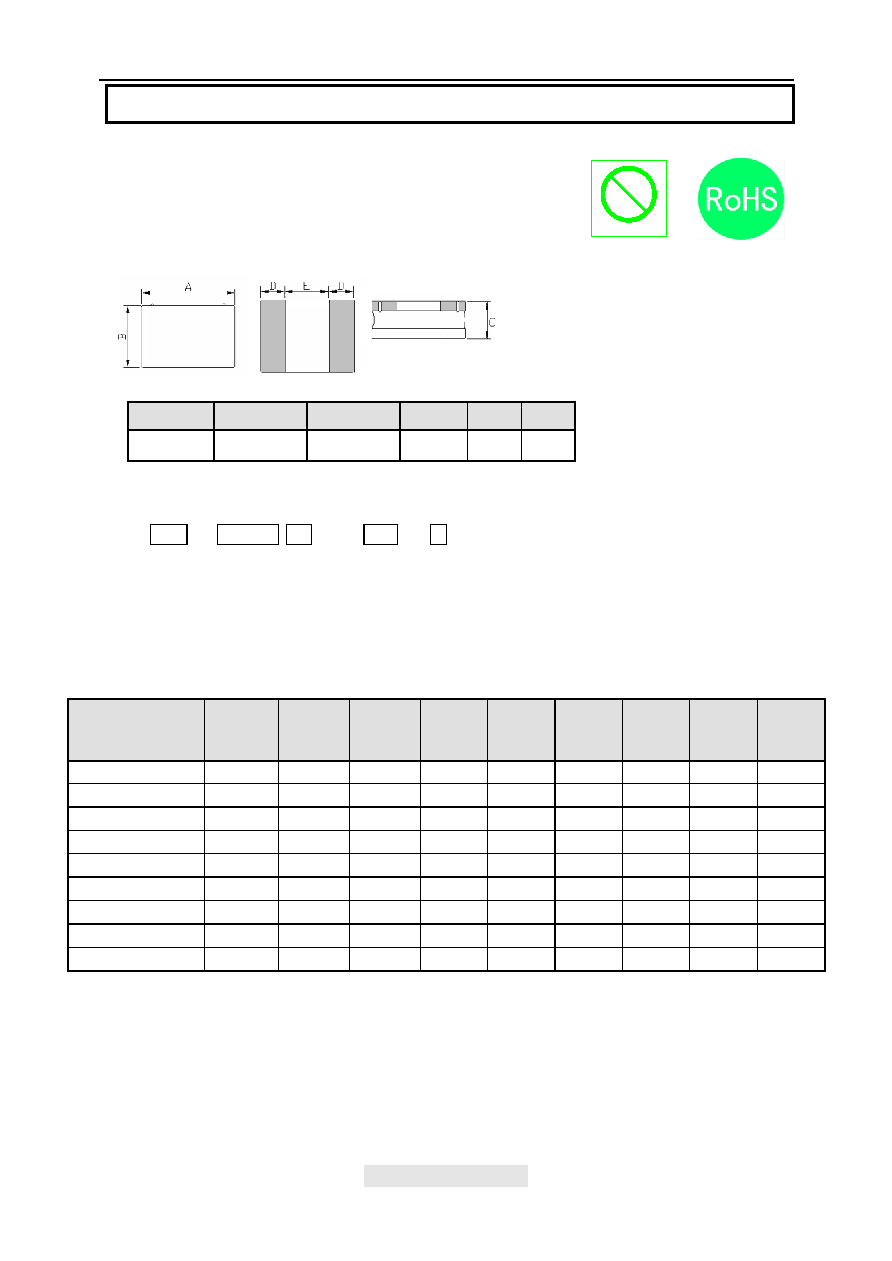

1. Features

2. Dimension

3. Part Numbering

4. Specification

DFP

201612 NF

-

R24

M

A

B

C

D

E

A: Series

B: Dimension

C: Lead Free

Material

D: Inductance

R24=0.24uH

E: Inductance Tolerance

M=±20%

Series

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

DFP201612NF

2.0 -0.1/+0.2

1.6 -0.1/+0.2

1.20Max.

0.60 ref. 0.80 ref.

Power Inductor

DFP201612NF-SERIES

TAI-TECH

Part Number

Inductance

(uH)

Tolerance

(%)

Test

Frequency

(Hz)

DCR

(Ω) typ.

DCR

(Ω) Max.

I sat

(A) typ.

I sat

(A) Max.

I rms

(A) typ.

I rms

(A) Max.

DFP201612NF-R24M

0.24

±20%

0.1V/1M

0.025

0.033

5.40

4.80

4.00

3.50

DFP201612NF-R33M

0.33

±20%

0.1V/1M

0.027

0.034

4.70

3.90

3.20

DFP201612NF-R47M

0.47

±20%

0.1V/1M

0.035

0.046

3.90

3.50

3.30

2.90

DFP201612NF-R56M

0.56

±20%

0.1V/1M

0.053

0.064

3.50

3.00

2.60

DFP201612NF-R68M

0.68

±20%

0.1V/1M

0.055

0.066

3.30

2.80

3.00

2.60

DFP201612NF-1R0M

1.00

±20%

0.1V/1M

0.080

0.104

3.00

2.50

2.70

2.30

DFP201612NF-1R2M

1.20

±20%

0.1V/1M

0.088

0.106

3.00

2.50

2.70

2.30

DFP201612NF-1R5M

1.50

±20%

0.1V/1M

0.090

0.108

2.50

2.00

2.10

1.80

DFP201612NF-2R2M

2.20

±20%

0.1V/1M

0.155

0.186

2.00

1.60

1.50

1.30

Note:

Isat：Saturation Current (Isat) will cause L0 to drop approximately 30%.

Irms：Heat Rated Current (Irms) will cause the coil temperature rise approximately ΔT of 40℃

Halogen-free

Halogen

1. This specification applies Low Profile Power Inductors.

2. 100% Lead(Pb) & Halogen-Free and RoHS compliant.

3. Operating temperature :-40~+125℃ (Including self - temperature rise)
