www.cherryswitches.com

Page 2 of 2, Last update 2015-09-11, Specifications subject to change without notice.

Electrical Specifications

Inrush Rating – 2 position

48 A

Inrush Rating – 3 position

24 A

Dielectric Strength

1000 VAC for 1 minute

Insulation Resistance

100 MΩ min at 500 VDC

Initial Contact Resistance

0.020 Ω max

Electrical Ratings

Switch Function

EN61058-1

UL Gen Purpose 1054

UL HP

ALL

16 (4) A 250 V~ T125/55

16 A 125 VAC / 16 A 250 VAC

¼ HP 125 VAC, ¾ HP 250 VAC

Electrical Life at Rated Load

VDE

UL

Minimum Operations

10,000

6,000

UL File No: E23301

Material and Environmental Specifications

Actuator, non-lighted

Nylon 66 94V-2

Actuator, lighted

Polycarbonate

Base

Nylon 66 94V-2

Spring

Steel Wire

Contacts

Silver Alloy

Movable Arm

Silver-Plated Copper Alloy

Terminals

Tin-Plated Copper Alloy

Operating Temperature Range - VDE

-20

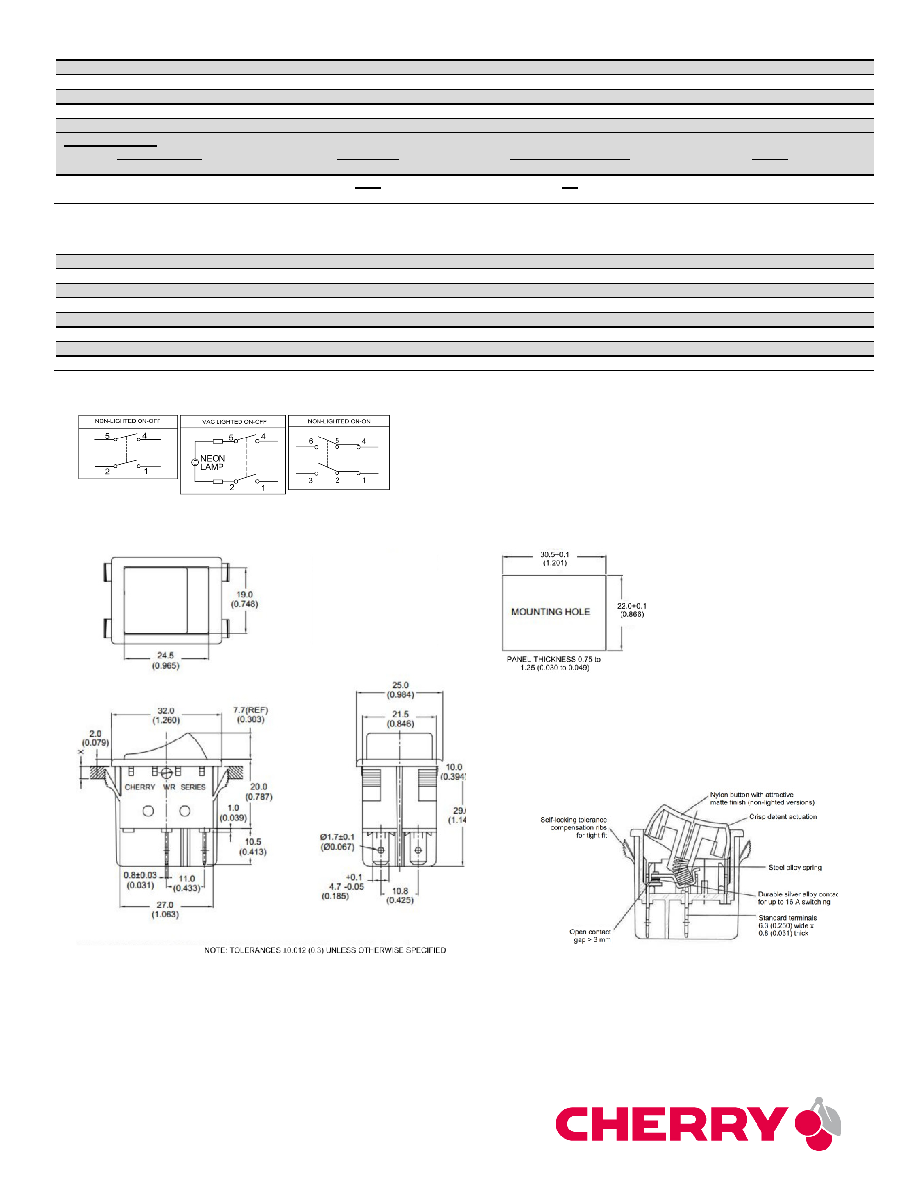

Circuitry and Switch Functions

Dimensions mm (inches)
