AST-01708MR-R datasheet(3/3 Pages) PUIAUDIO

номер детали	AST-01708MR-R

подробное описание детали	17mm diameter speaker with Neodymium magnet for 90 dB sensitivity

PDF	3 Pages

Scroll/Zoom	100%

производитель	PUIAUDIO [PUI audio inc.]

домашняя страница	http://www.puiaudio.com/

Logo

3 / 3 page

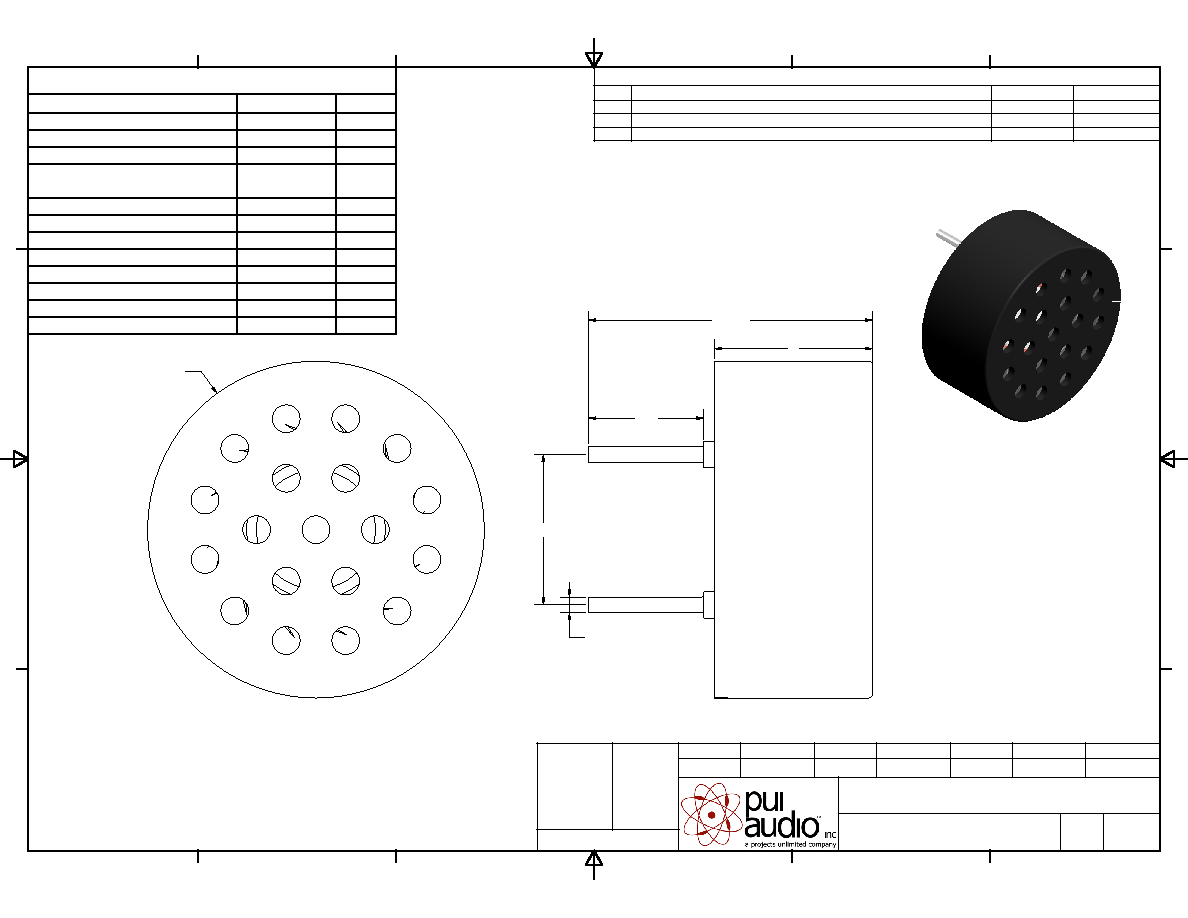

Speaker

AST-01708MR-R

J.A.F.

B.R.

E.P.

2/25/2009

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

11/2/2005

Date

11/2/2005

Date

11/2/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AST-01708MR-R.idw

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

RELEASED FROM ENGINEERING

11/2/2005

ADDED OVERALL HEIGHT DIMENSION

2/24/2009

B.R.

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

2/25/2009

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.2

MAX INPUT POWER

0.5

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.2W/0.1M

(AT 2.0, 2.5, 3.0, 4.0 kHz)

87 ± 3

dBA

DISTORTION (MAX.)

RESONANT FREQUENCY

1,500 ± 20%

FREQUENCY RANGE

1,500 ~ 20,000

HOUSING MATERIAL

PBT

CONE MATERIAL

MYLAR

MAGNET MATERIAL

Nd-Fe-B

OPERATING TEMPERATURE

-20 ~ +55

°C

WEIGHT

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n17

7.6

0.8

n`0.05 (2)

5.8

14.35
