AS09208AR-R datasheet(1/2 Pages) PUIAUDIO

номер детали	AS09208AR-R

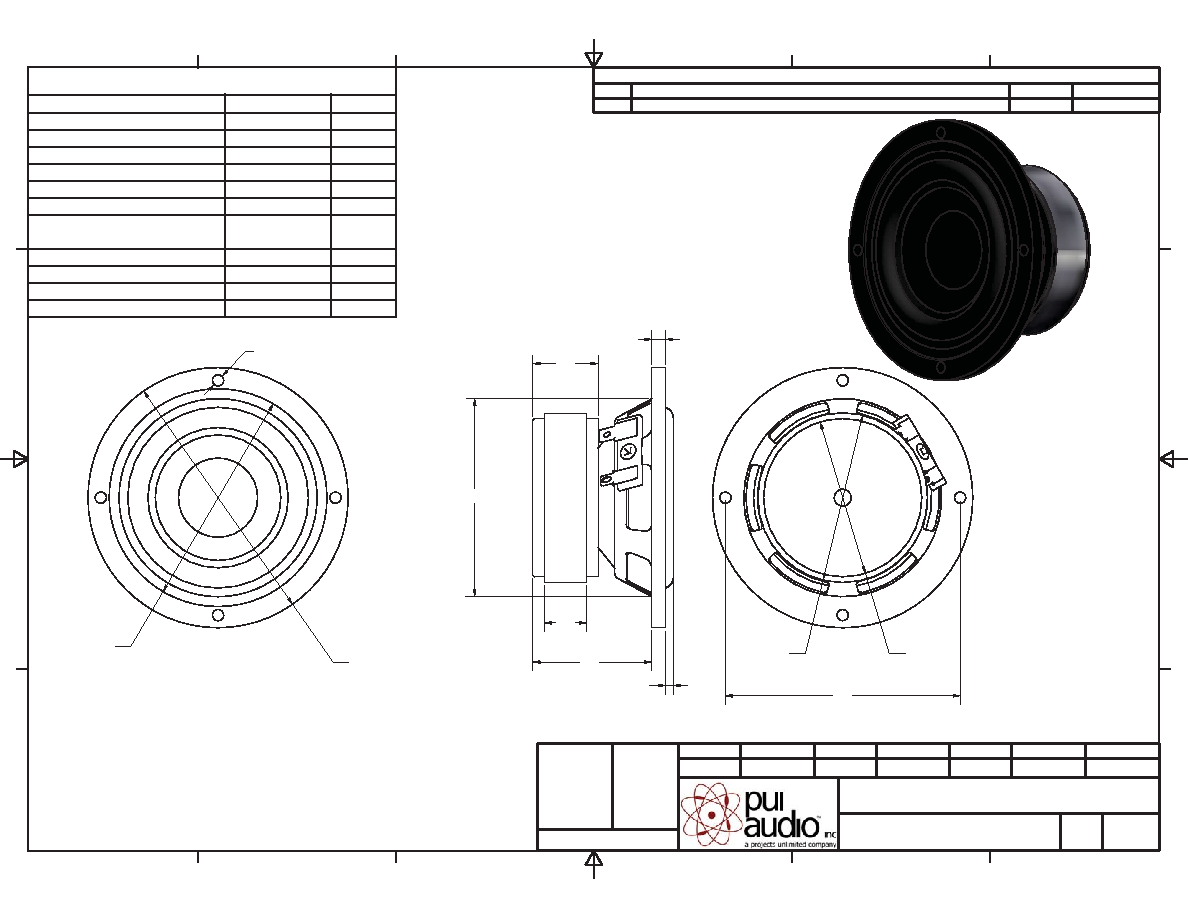

подробное описание детали	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	2 Pages

Scroll/Zoom	100%

производитель	PUIAUDIO [PUI audio inc.]

домашняя страница	http://www.puiaudio.com/

Logo

1 / 2 page

Speaker

AS09208AR-R

M.V.

B.R.

7/27/2016

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

7/27/2016

Date

7/27/2016

Date

7/27/2016

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS09208AR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

7/27/2016

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

10

W

MAX INPUT POWER

15

W

IMPEDANCE

8± 15%

OHM

OUTPUT SPL @ 2.83V/1M

82 ± 3

dBA

RESONANT FREQUENCY

90 ± 20%

Hz

FREQUENCY RANGE

90 ~ 15,000

Hz

FRAME MATERIAL

STAMPED

STEEL

-

CONE MATERIAL

ALUMINUM

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-20~ +60

°C

WEIGHT

360

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

4 (X4)

92

77

70

5

15

23

42

55.9

60

2.6

83
