AS05008PR-WR-R datasheet(1/1 Pages) PUIAUDIO

номер детали	AS05008PR-WR-R

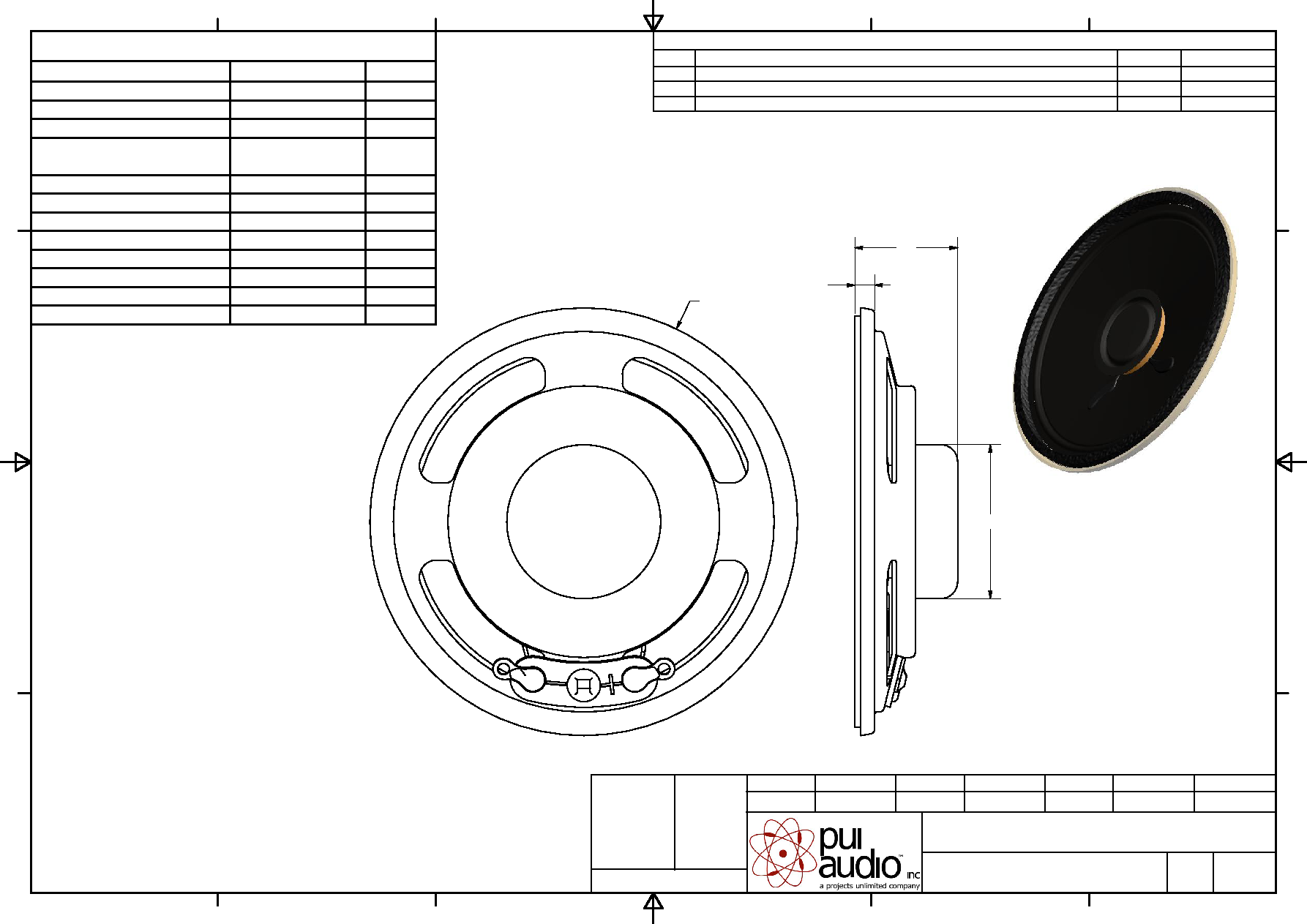

подробное описание детали	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

производитель	PUIAUDIO [PUI audio inc.]

домашняя страница	http://www.puiaudio.com/

Logo

1 / 1 page

Speaker

AS05008PR-WR-R

J.D.

E.P.

B.R.

9/25/2007

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/8/2006

Date

5/9/2006

Date

5/9/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS05008PR-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/8/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

9/25/2007

B.R.

B

REVISED SPECS. AND DIMENSIONS OF PART, ADDED NOTE 5

8/3/2011

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/1M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

84

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

550

20%

Hz

FREQUENCY RANGE

550 ~ 5000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-30 ~ +55

C

WEIGHT

14.8

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

5. BASE SPEAKER PUI# AS05008PR-A-R

2003, Projects Unlimited Inc.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.
