AS05008MR-R datasheet(1/1 Pages) PUIAUDIO

номер детали	AS05008MR-R

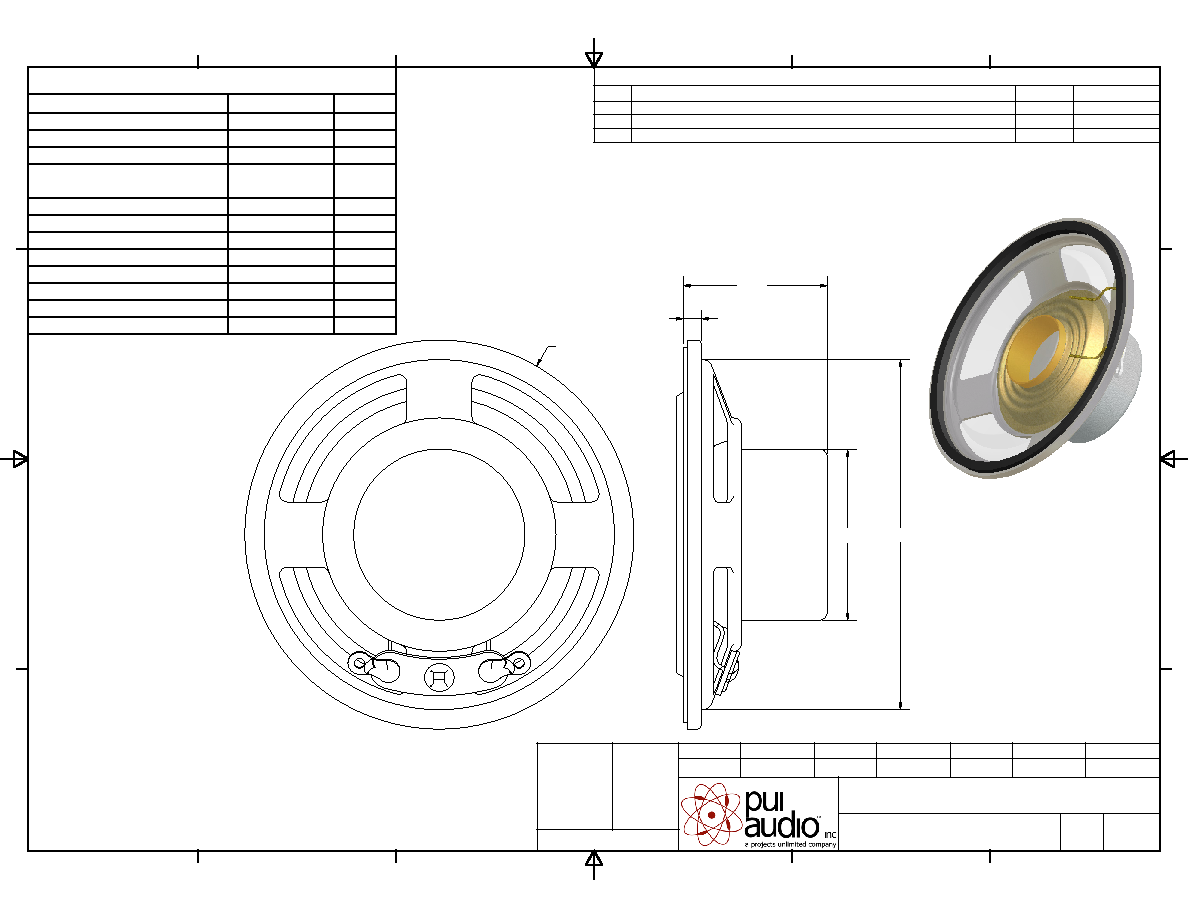

подробное описание детали	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

производитель	PUIAUDIO [PUI audio inc.]

домашняя страница	http://www.puiaudio.com/

Logo

1 / 1 page

Speaker

AS05008MR-R

R.A.C.

E.P.

R.W.

1/8/2009

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

9/21/2004

Date

9/21/2004

Date

9/21/2004

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS05008MR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE APPROVED

-

RELEASED FROM ENGINEERING

9/21/2004

A

REMOVED LEAD FREE ADDED RoHS NOTE

8/10/2005

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/8/2009

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.2

W

MAX INPUT POWER

0.4

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

80 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

550 ± 20%

Hz

FREQUENCY RANGE

550 ~ 4,500

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

°C

WEIGHT

31

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

n50

22

Ø

45

`0.3

18.5

2.3
