AS02008MR-5-R datasheet(1/1 Pages) PUIAUDIO

номер детали	AS02008MR-5-R

подробное описание детали	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

производитель	PUIAUDIO [PUI audio inc.]

домашняя страница	http://www.puiaudio.com/

Logo

1 / 1 page

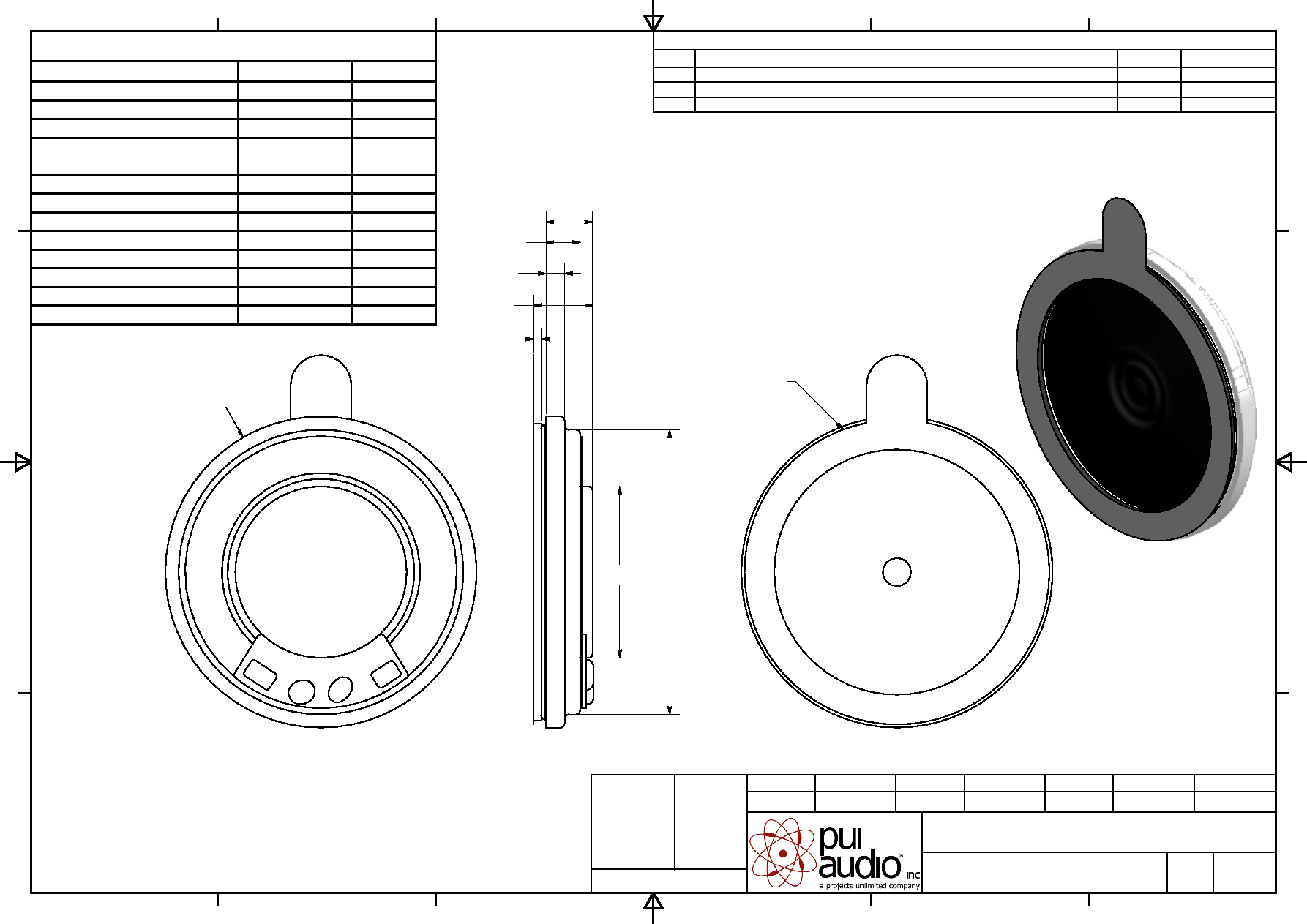

Speaker

AS02008MR-5-R

B.R.

C.W.

B.R.

7/16/2013

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

4/28/2009

Date

4/28/2009

Date

4/28/2009

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS02008MR-5-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

4/28/2009

A

REVISED TERMINAL LAYOUT

9/24/2010

B.R.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

7/18/2013

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.5

W

MAX INPUT POWER

0.8

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 0.1W/0.1M

(AT 0.8, 1.0, 1.2, 1.5, kHz)

86

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

500

20%

Hz

FREQUENCY RANGE

500 ~ 4,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

MYLAR

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +55

C

WEIGHT

2.4

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2011/65/EU COMPLIANT.

20

0.2

3

0.2

1.2

0.2

11

18.3

2003, Projects Unlimited Inc.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2.2

0.2

3.8

0.3

0.5

DOUBLE-SIDED

FOAM TAPE GASKET
