© 2017 Kingbright. All Rights Reserved. Spec No: DSAM6456 / 1201008407 Rev No: V.3B Date: 07/18/2017

Page 1 / 4

DESCRIPTIONS

The Green source color devices are made with

InGaN on Sapphire Light Emitting Diode

Electrostatic discharge and power surge could

damage the LEDs

It is recommended to use a wrist band or

anti-electrostatic glove when handling the LEDs

All devices, equipments and machineries must be

electrically grounded

FEATURES

3.0 mm x 2.0 mm, 1.3 mm high, only minimum

space required

Suitable for compact optoelectronic applications

Low power consumption

Package: 2000 pcs / reel

Moisture sensitivity level: 3

RoHS compliant

APPLICATIONS

Backlight

Status indicator

Home and smart appliances

Wearable and portable devices

Healthcare applications

ATTENTION

Observe precautions for handling

electrostatic discharge sensitive devices

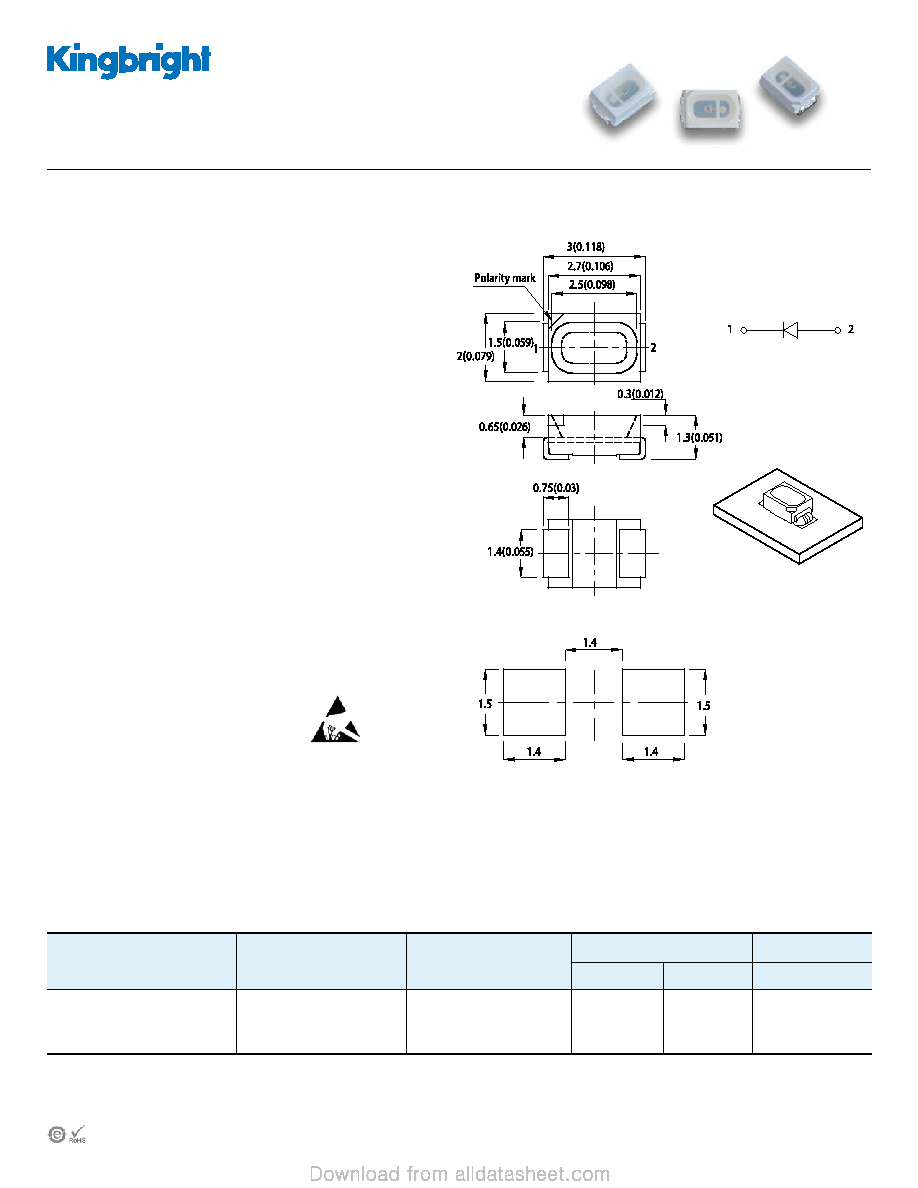

PACKAGE DIMENSIONS

SELECTION GUIDE

AA3021ZGSK

3.0 x 2.0 mm Surface Mount LED Lamp

RECOMMENDED SOLDERING PATTERN

(units : mm; tolerance : ± 0.1)

Part Number

Emitting Color

(Material)

Lens Type

Min.

Typ.

2θ1/2

AA3021ZGSK

Water Clear

400

700

120

°

Notes:

1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.

2. Luminous intensity / luminous flux: +/-15%.

3. Luminous intensity value is traceable to CIE127-2007 standards.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to

change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.
