© 2019 Kingbright. All Rights Reserved. Spec No: DSAL0861 / 1201006671 Rev No: V.3B Date: 04/09/2019

Page 1 / 4

DESCRIPTIONS

The Green source color devices are made with InGaN

Light Emitting Diode

Electrostatic discharge and power surge could

damage the LEDs

It is recommended to use a wrist band or

anti-electrostatic glove when handling the LEDs

All devices, equipments and machineries must be

electrically grounded

FEATURES

3.0 mm x 2.0 mm, 1.3 mm high, only minimum

space required

Suitable for compact optoelectronic applications

Low power consumption

Package: 2000 pcs / reel

Moisture sensitivity level: 3

RoHS compliant

APPLICATIONS

Backlight

Status indicator

Home and smart appliances

Wearable and portable devices

Healthcare applications

ATTENTION

Observe precautions for handling

electrostatic discharge sensitive devices

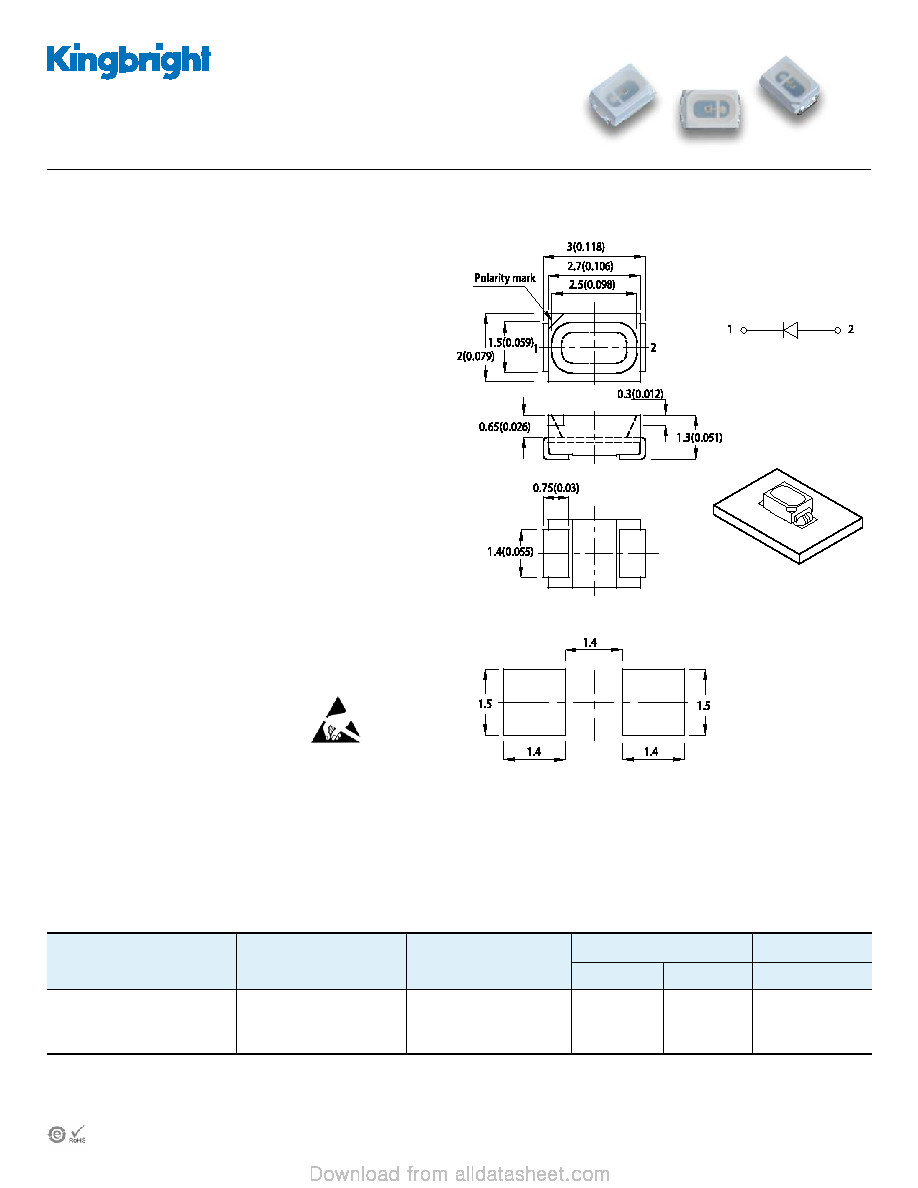

PACKAGE DIMENSIONS

SELECTION GUIDE

AA3021ZGS/G

3.0 x 2.0 mm Surface Mount LED Lamp

RECOMMENDED SOLDERING PATTERN

(units : mm; tolerance : ± 0.1)

Part Number

Emitting Color

(Material)

Lens Type

Min.

Typ.

2θ1/2

AA3021ZGS/G

Water Clear

700

1300

120

°

Notes:

1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value.

2. Luminous intensity / luminous flux: +/-15%.

3. Luminous intensity value is traceable to CIE127-2007 standards.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. The specifications, characteristics and technical data described in the datasheet are subject to

change without prior notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.
