P9225-R Datasheet
© 2018 Integrated Device Technology, Inc.
15
November 12, 2018

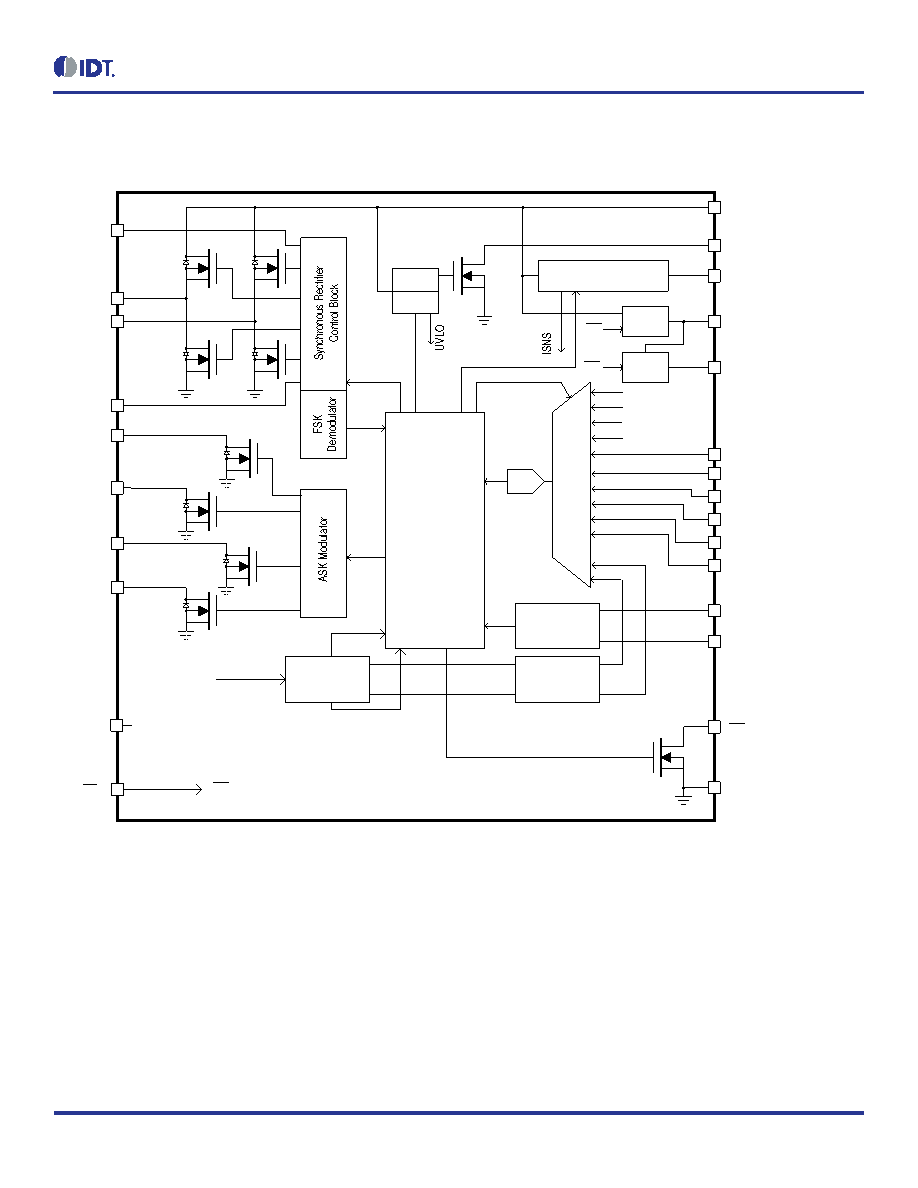

7. Functional Block Diagram
Figure 15. Functional Block Diagram
LDO
VRECT
SINK
OVP
BST1
AC1
AC2
OUT
VRECT
VOUT
ISNS
TS
ILIM
VOSET
RPPO
RPPG
VTDIE
ADC
MUX
SCL
SDA
VDD5V
LDO
5V
LDO
1.8V
VDD18
GND
UVLO
AC1
RSVx
EN
EN
EN
EN
INT
BST2
COM1
COM2
COMB
COMA
Peak Detector
and LPF
I2C
Slave
Phase Detector
32-bit ARM
Processor
EOC
