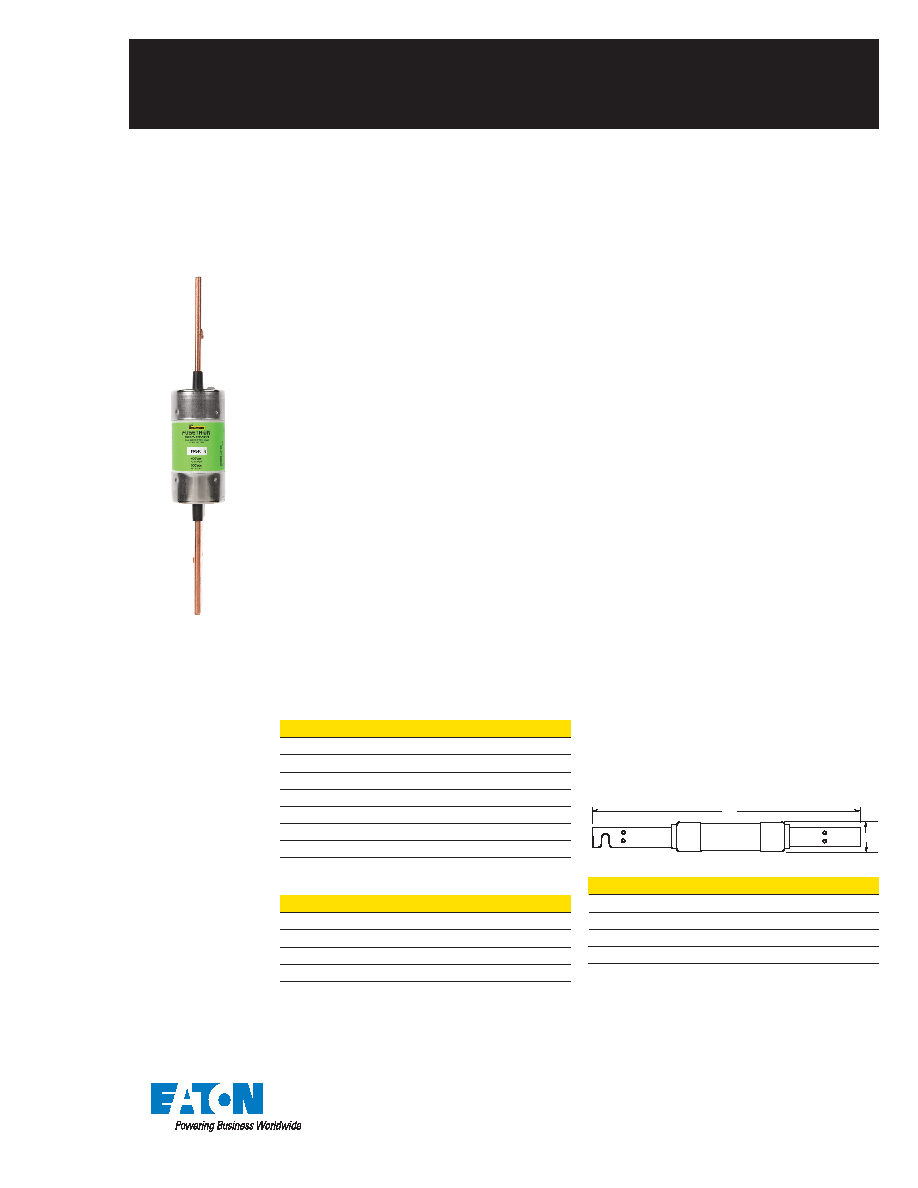

Fusetron™ 600V Class RK5

FRS-R — 600 Vac/300 Vdc, 65-600 A, dual element, time-delay fuses

Catalog symbol:

•

FRS-R-(amp)

Description:

Advanced protection, energy efficient Class RK5

dual element, current-limiting, time-delay fuses.

Time-delay – 10 seconds (minimum) at 500% of

rated current.

Specifications:

Ratings

•

Volts — 600Vac, 300Vdc

•

Amps — 65-600A

•

Interrupting rating

•

200 kA Vac RMS Sym

•

20 kA Vdc

Agency information

•

JDDZ, File E4273

•

1422-02, File 53787

•

CE

Catalog numbers (amps)

FRS-R-65

FRS-R-125

FRS-R-350

FRS-R-70

FRS-R-150

FRS-R-400

FRS-R-75

FRS-R-175

FRS-R-450

FRS-R-80

FRS-R-200

FRS-R-500

FRS-R-90

FRS-R-225

FRS-R-600

FRS-R-100

FRS-R-250

FRS-R-110

FRS-R-300

Carton quantity

Amp ratings

Carton Qty.

65–100

1

101–200

1

201–400

1

401–600

1

Features:

•

Provides motor overload, ground fault

and short-circuit protection. When used in

circuits subject to surge currents such as

those caused by motors, transformers and

other inductive components, these fuses

can be sized close to full-load amps to give

maximum overcurrent protection

•

The time-delay feature makes it possible

to use fuse amp ratings which are much

smaller than those of non-time delay

fuses. Considerable cost saving occurs by

permitting the use of smaller size switches,

panels and fuses themselves

•

Provides a good degree of short-circuit

protection (greater current-limitation) to help

protect downstream components from high

fault currents

•

Gives motor running back-up protection to

motors without extra cost

•

Helps protect motors against burnout from

overloads and single-phasing when sized

properly

•

Simplifies and improves blackout prevention

(selective coordination ratios)

•

Dual-element fuses can be applied in

circuits subject to temporary motor

overloads and surge currents to provide

both high-performance, short-circuit and

overload protection

Dimensions - in:

A

B

Amp ratings

A

B

65-100

7.88

1.11

110-200

9.63

1.61

225-400

11.63

2.34

450-600

13.38

2.88

Technical Data 1018

Effective May 2016

Supersedes July 2013

BUSSMANN

SERIES
