MPI25-V2

High current, low profile, miniature power inductors

www.eaton.com/electronics

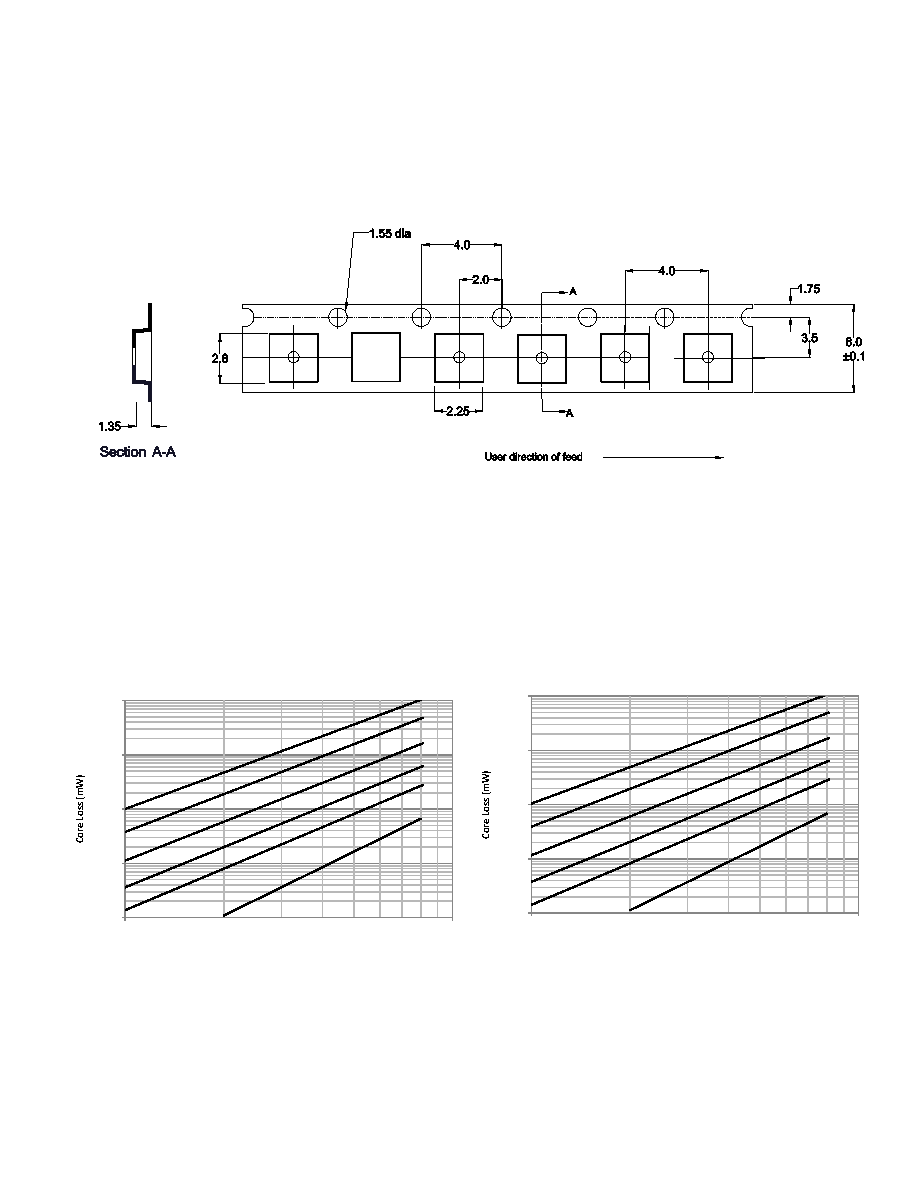

Packaging information (mm)

Core loss vs. Bp-p (+25 °C)

Supplied in tape and reel packaging, 3000 parts per 7” diameter reel

0.001

0.010

0.100

1.000

10.000

100

1000

Bp-p (Gauss)

100 kHz

300 kHz

500 kHz

MPI2510V2-R33-R

1 MHz

2 MHz

3 MHz

0.001

0.010

0.100

1.000

10.000

100

1000

Bp-p (Gauss)

100 kHz

300 kHz

500 kHz

MPI2510V2-R47-R

1 MHz

2 MHz

3 MHz
