Data Sheet
ADM1266
Rev. A | Page 13 of 62
TYPICAL PERFORMANCE CHARACTERISTICS
47.2
47.3
47.4
47.5
47.6
47.7
47.8
47.9
48.0
3
4
5
6
7
8
9
10
11
12
VH1/VH2 SUPPLY VOLTAGE (V)

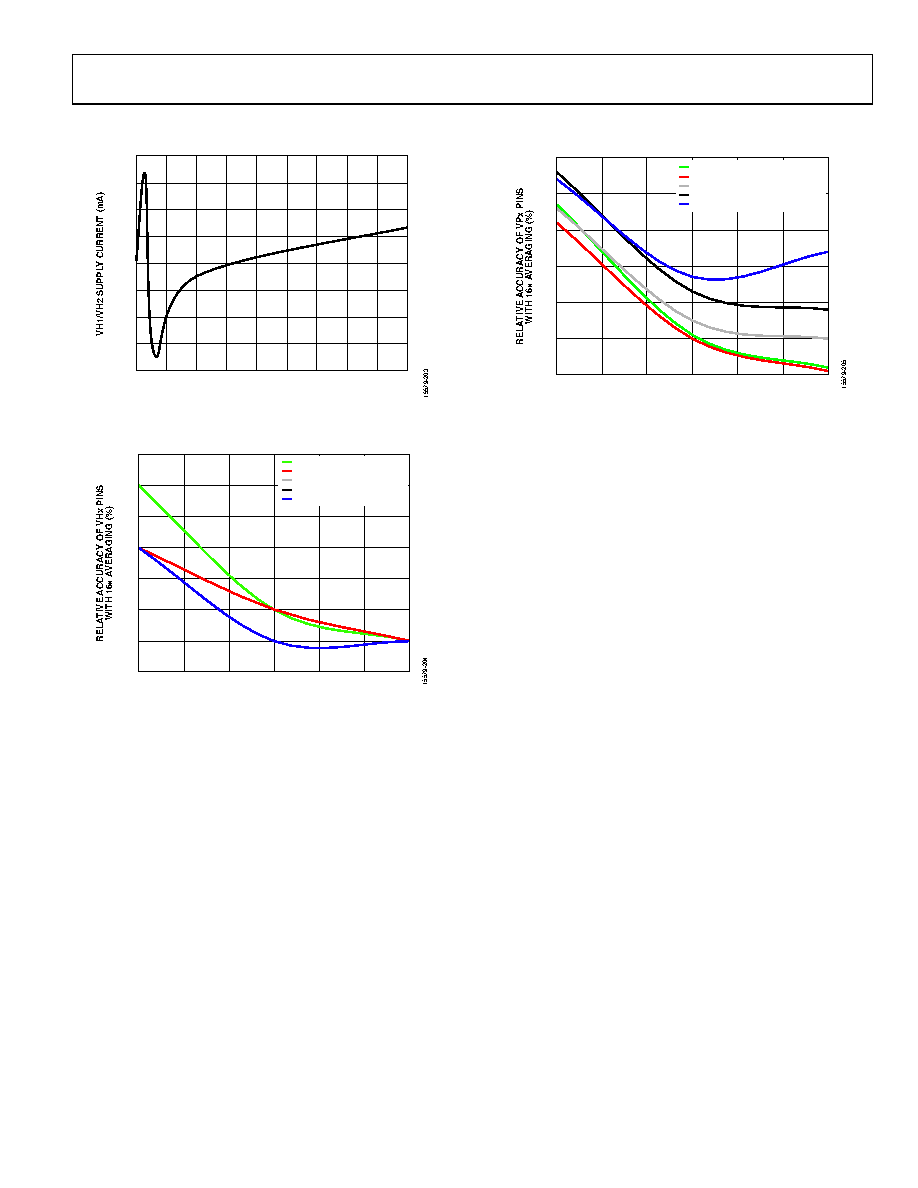

Figure 4. VH1/VH2 Current vs. VH1/VH2 Voltage with a 42 mA Load on
AVDD_CAP
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
MINIMUM RANGE VALUE (V)
MAXIMUM RANGE VALUE (V)
400mV TO 1V RANGE
750mV TO 1.875V RANGE
1.5V TO 3.75V RANGE
3V TO 7.5V RANGE
6V TO 15V RANGE
Figure 5. Relative Accuracy of VHx Pins with 16x Averaging (%) Across the
Supply Fault Detector Range
MINIMUM RANGE VALUE (V)
MAXIMUM RANGE VALUE (V)
0.5
0.6
0.7
0.8
0.9
1.0
1.1
400mV TO 1V HIGH-Z RANGE
400mV TO 1V DIRECT RANGE
750mV TO 1.875V RANGE
1.5V TO 3.75V RANGE
2V TO 5V RANGE
Figure 6. Relative Accuracy of VPx Pins with 16× Averaging (%) Across the
Supply Fault Detector Range
