Mechanical characteristics

Conductor cross-section

0.5 mm² ... 4 mm²

Connection cross-section AWG

20 ... 12

Stripping length of the individual wire

7.5 mm

Insertion/withdrawal cycles

≥ 500

General characteristics

Number of module slots

1

Connection method

Crimp connection

Inflammability class acc. to UL 94

V0

Pollution degree

3

Surge voltage category

III

Assembly instructions

Housing height ≥ 52 mm.Plug-in connections may only be

operated only when there is no load/voltage.

Material data

Contact material

Copper alloy

Contact surface material

Ag (alternatively Au)

Contact carrier material

PC

Certificates / Approvals

Certification

CSA, GOST, UL

Diagrams/Drawings

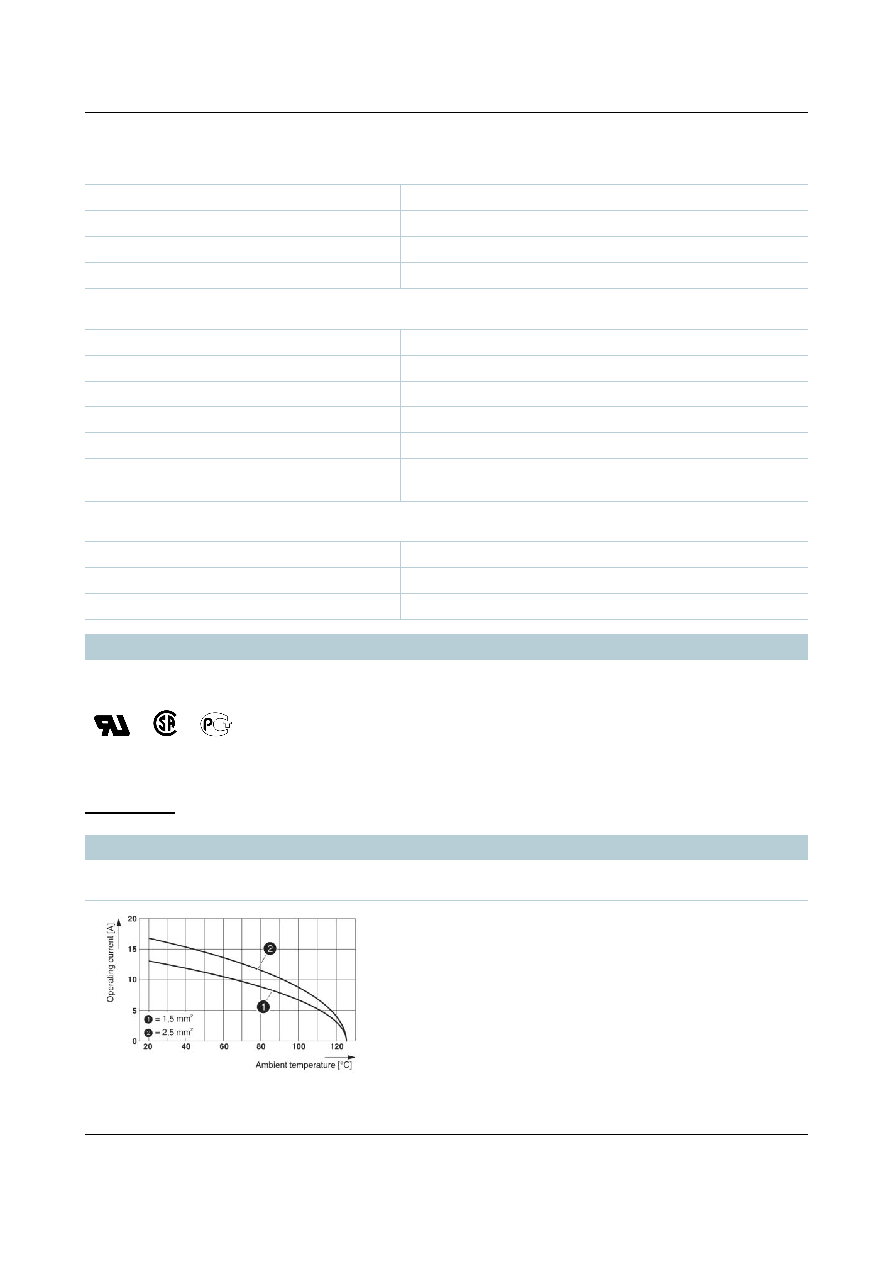

Diagram

Derating diagram (6 modules in HC-B 24 housing)
