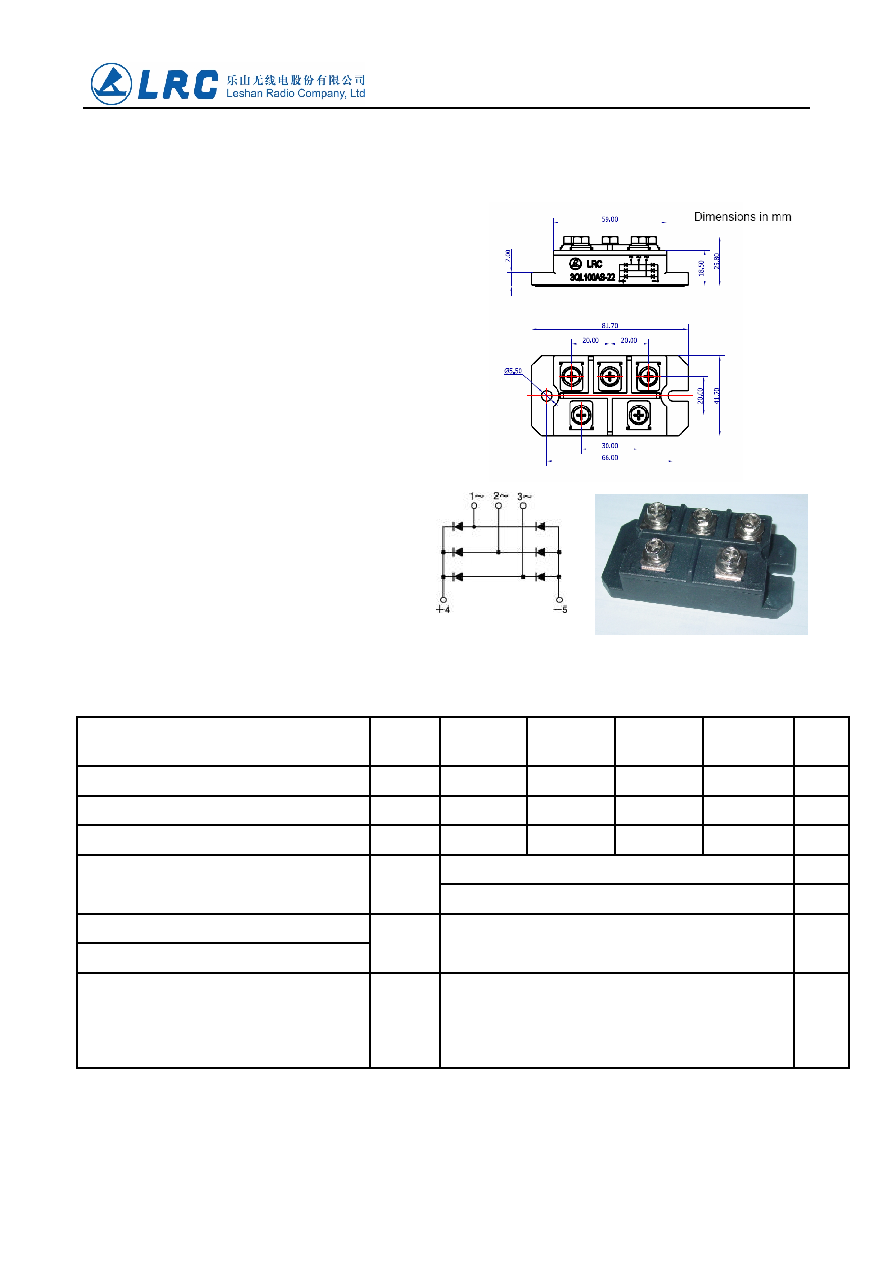

3QL60AK-22 Thru 3QL60AS-22

1. 外型尺寸Feature & Dimension

Features

l

Package with screw terminals

l

Isolation voltage 3000 V~

l

Glass passivated chips

l

Blocking voltage up to 1600 V

l

Low forward voltage drop

l

UL registered E231047

Applications

l

Supplies for DC power equipment

l

Input rectifiers for PWM inverter

l

Battery DC power supplies

l

Field supply for DC motors

Advantages

l

Easy to mount with two screws

l

Space and weight savings

l

Improved temperature and power cycling

2. 产品性能Product Characteristic

ELECTRICAL AND THERMAL CHARACTERISTICS

TC=25

°C unless otherwise specified

Item

Symbol

3QL60AK

3QL60AO

3QL60AQ

3QL60AS

Unit

Maximum repetitive voltage

VRM

800

1200

1400

1600

V

Maximum RMS Voltage

VRMS

560

840

980

1120

V

Maximum DC Blocking Voltage

VDC

800

1200

1400

1600

V

≤10

uA

Peak Reverse Current (per leg) @Tj = 25

°C

At Rated DC Blocking Voltage @Tj = 150

°C

IR

≤8

mA

Average recified forward current 60Hz sine

wave,R-load with heatsink Tc=100℃

Io

60

A

TJ=45℃VR=0

t=10ms (50Hz),sine

t=8.3ms(60Hz),sine

TJ=150℃ VR=0

t=10ms (50Hz),sine

t=8.3ms(60Hz),sine

IFSM

700

750

590

620

A
