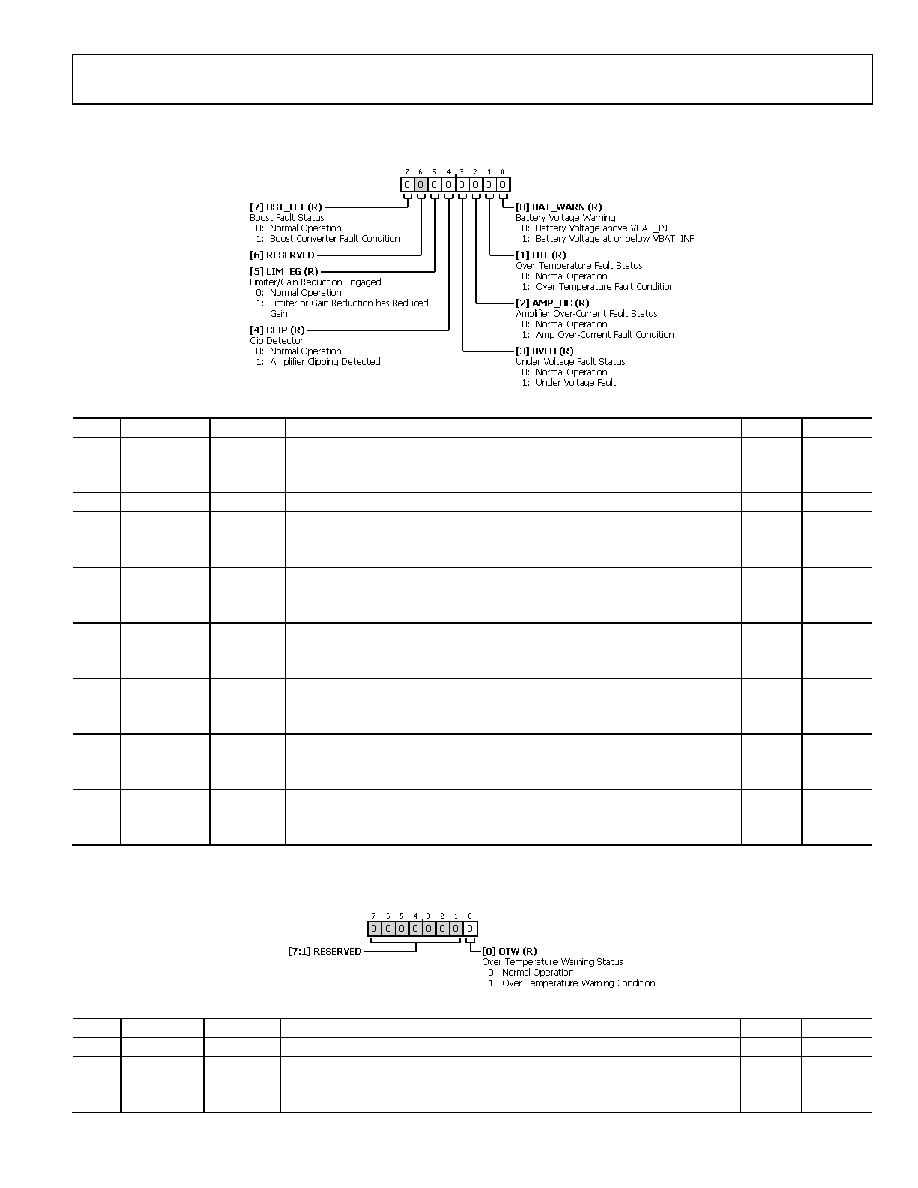

background image
Data Sheet
SSM4567
Rev. 0| Page 47 of 52
STATUS 1 REGISTER
Address: 0x10, Reset: 0x00, Name: STATUS_1
Table 42. Bit Descriptions for STATUS_1
Bits
Bit Name
Settings
Description
Reset
Access
7
BST_FLT
Boost Fault Status
0x0
R
0
Normal Operation
1
Boost Converter Fault Condition
6
RESERVED
Reserved.
0x0
R
5
LIM_EG
Limiter/Gain Reduction Engaged
0x0
R
0
Normal Operation
1
Limiter or Gain Reduction has Reduced Gain
4
CLIP
Clip Detector
0x0
R
0
Normal Operation
1
Amplifier Clipping Detected
3
UVLO
Under Voltage Fault Status
0x0
R
0
Normal Operation
1
Under Voltage Fault
2
AMP_OC
Amplifier Overcurrent Fault Status
0x0
R
0
Normal Operation
1
Amp Overcurrent Fault Condition
1
OTF
Over Temperature Fault Status
0x0
R
0
Normal Operation
1
Over Temperature Fault Condition
0
BAT_WARN
Battery Voltage Warning
0x0
R
0
Battery Voltage above VBAT_INF
1
Battery Voltage at or below VBAT_INF
STATUS 2 REGISTER
Address: 0x11, Reset: 0x00, Name: STATUS_2
Table 43. Bit Descriptions for STATUS_2
Bits
Bit Name
Settings
Description
Reset
Access
[7:1]
RESERVED
Reserved.
0x0
R
0
OTW
Overtemperature Warning Status
0x0
R
0
Normal Operation
1
Overtemperature Warning Condition
