Data Sheet
AD8141/AD8142
Rev. B | Page 9 of 24
0
–10
–20
–30
–40
–50
–60
–70
–80
1
10
100
1k
FREQUENCY (MHz)
ΔVOUT, cm/ΔVOUT, dm
ΔVOUT, dm = 2V p-p

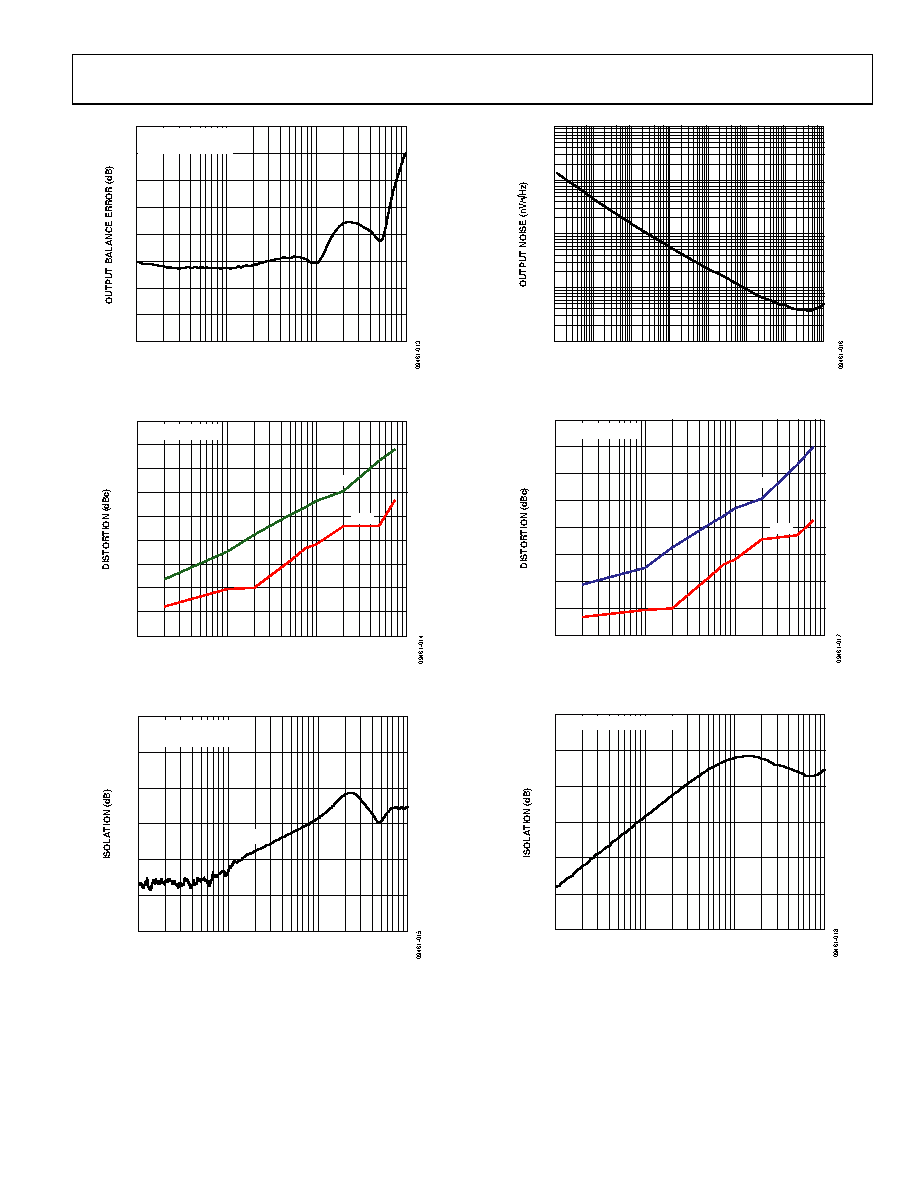

Figure 12. Output Balance Error vs. Frequency
–30
–40
–50
–60
–70
–80
–90
–100
–110
–120
0.1
1
10
100
FREQUENCY (MHz)
VOUT, dm = 2V p-p
HD3
HD2
Figure 13. AD8141 Harmonic Distortion vs. Frequency
–20
–40
–60
–80
–100
–120
–140
1
10
FREQUENCY (MHz)
100
1k
GREEN TO RED,
ΔVOUT, dm R/ΔVIN, dm G
RED
Figure 14. Channel-to-Channel Isolation vs. Frequency
100k
10k
1k
100
10
10
100
1k
10k
100k
1M
10M
100M
FREQUENCY (Hz)
Figure 15. Output Voltage Noise Density vs. Frequency
–30
–40
–50
–60
–70
–80
–90
–100
–110
0.1
1
10
100
FREQUENCY (MHz)
VOUT, dm = 2V p-p
HD3
HD2
Figure 16. AD8142 Harmonic Distortion vs. Frequency
–30
–40
–50
–60
–70
–80
–90
1
10
100
1k
FREQUENCY (MHz)
DIS INPUT VOLTAGE = 5V
Figure 17. Disabled Input-to-Output Isolation vs. Frequency
