MAINSLINK

Patent Pending

Cable Connections

MAINSLINK is very easy to connect, simply wire as follows:

MAINSLINK-TX - Transmitter:

1.

Run a switched Live from your external device or

switch to the MAINSLINK-TX Transmitter and connect into the

screw terminal marked: L (Live)

2.

Run a Neutral to the MAINSLINK-TX and connect to the

terminal marked N (Neutral).

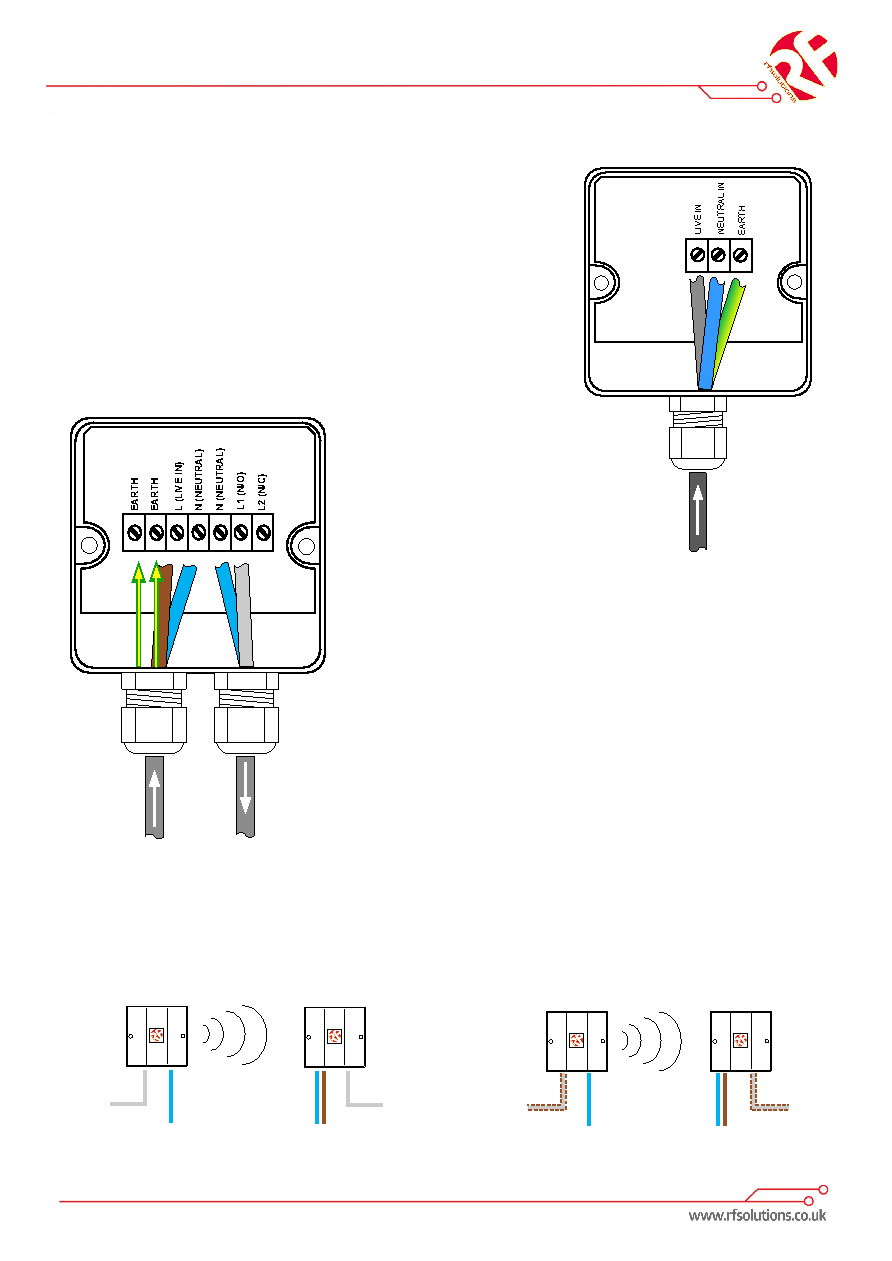

AS SHOWN IN FIG 1.1

CABLE IN

FIG 1.1

MAINSLINK System Operation

Transmitter - MAINSLINK-TX

NEUTRAL IN

SWITCHED LIVE

LIVE IN

SWITCHED LIVE

NEUTRAL IN

MAINSLINK-TX

MAINSLINK-RX

NEUTRAL IN

SWITCHED LIVE

LIVE IN

SWITCHED LIVE

NEUTRAL IN

MAINSLINK-TX

MAINSLINK-RX

Receiver - MAINSLINK-RX

FIG 1.2

MAINSLINK-RX - Receiver:

1.

Connect the Supply:

LIVE, NEUTRAL and EARTH.

Connect the Live to the screw terminal marked: LIVE then

connect the NEUTRAL and EARTH

respectively.

2.

Connect the LOAD to the receiver and wire in

as required.

3.

In most applications the LOAD would be

wired as shown in FIG 1.2

Important Notes:

•

All mains powered units must be earthed

•

Hardwired units must be connected via an isolating switch

•

See Safety information on page 5 before installing

SWITCHED LIVE

OUT

CABLE IN

S U P P L Y

L O A D

EARTH
