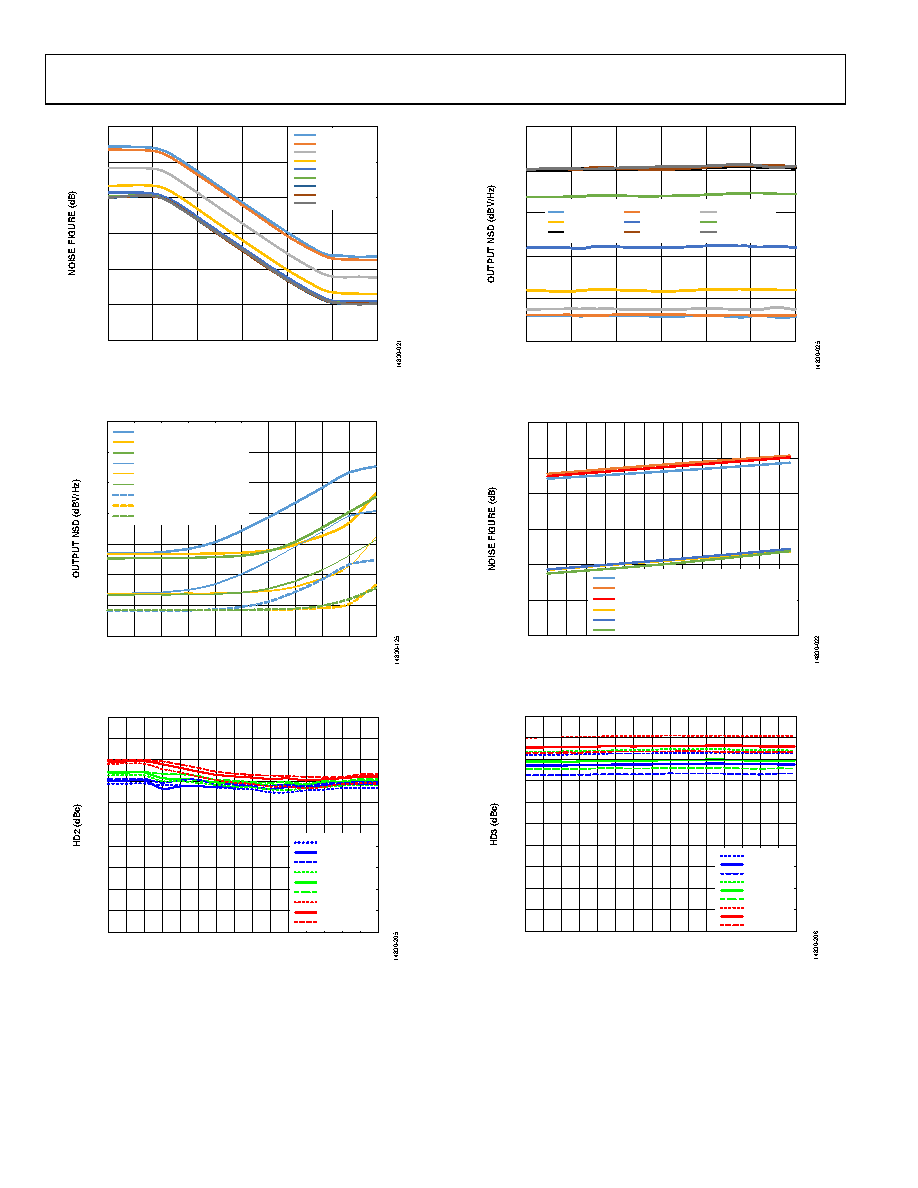

ADRF6520
Data Sheet
Rev. 0 | Page 12 of 29
60
50
40
30
20
10
0
0
0.25
0.50
0.75
1.00
1.25
1.50
VGN1 (V)
VGN2 = 0V
VGN2 = 0.2V
VGN2 = 0.4V
VGN2 = 0.6V
VGN2 = 0.8V
VGN2 = 1V
VGN2 = 1.2V
VGN2 = 1.4V
VGN2 = 1.6V
Figure 27. Noise Figure vs. VGN1 over VGN2, Bypass Mode
–80
–150
–140
–130
–120
–110
–100
–90
–60
–55
–50
–45
–40
–35
–30
–25
–20
–15
–10
INPUT BLOCKER LEVEL (dBV)
36MHz
fC, GAIN = 54dB
144MHz
fC, GAIN = 54dB
720MHz
fC, GAIN = 54dB
36MHz
fC, GAIN = 39dB
144MHz
fC, GAIN = 39dB
720MHz
fC, GAIN = 39dB
36MHz
fC, GAIN = 24dB
144MHz
fC, GAIN = 24dB
720MHz
fC, GAIN = 24dB
Figure 28. Output NSD vs. Input Blocker Level over VGA2 Gain and
Filter Corners; VGN1 = 1.5 V
–50
–55
–60
–65
–70
–75
–100
–90
–95
–85
–80
0
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
VGN1 (V)
–40°C, 3.15V
–40°C, 3.3V
–40°C, 3.45V
+25°C, 3.45V
+25°C, 3.15V
+25°C, 3.3V
+85°C, 3.15V
+85°C, 3.3V
+85°C, 3.45V
Figure 29. HD2 vs. VGN1 over Supply and Temperature, VGN2 = 0 V,
1.5 V p-p at Output, Bypass Mode
–115
–140
–135
–130
–125
–120
0
0.25
0.50
0.75
1.00
1.25
1.50
VGN1 (V)
VGN2 = 0V
VGN2 = 0.2V
VGN2 = 0.4V
VGN2 = 0.6V
VGN2 = 0.8V
VGN2 = 1.0V
VGN2 = 1.2V
VGN2 = 1.4V
VGN2 = 1.6V
Figure 30. Output NSD vs. VGN1 over VGN2; Bypass Mode
30
25
20
15
10
5
0
–50 –40 –30 –20 –10
0
10
20
30
40
50
60
70
80
90
TEMPERATURE (°C)
36MHz
fC; VGN1/VGN2 = 1.5V/0V
720MHz
fC; VGN1/VGN2 = 1.5V/0V
FILTER BYPASS; VGN1/VGN2 = 1.5V/0V
36MHz
fC; VGN1/VGN2 = 1.5V/1.5V
720MHz
fC; VGN1/VGN2 = 1.5V/1.5V
FILTER BYPASS; VGN1/VGN2 = 1.5V/1.5V
Figure 31. Noise Figure vs. Temperature over Bandwidth and Gain
VGN1 (V)
0
1.5
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
–50
–55
–60
–65
–70
–75
–100
–90
–95
–85
–80
–40°C, 3.15V
–40°C, 3.3V
–40°C, 3.45V
+25°C, 3.45V
+25°C, 3.15V
+25°C, 3.3V
+85°C, 3.15V
+85°C, 3.3V
+85°C, 3.45V
Figure 32. HD3 vs. VGN1 over Supply and Temperature, VGN2 = 0 V,
1.5 V p-p at Output, Bypass Mode
