AD8264ACPZ-R7 датащи(PDF) 15 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
AD8264ACPZ-R7 датащи(HTML) 15 Page - Analog Devices |
|
|

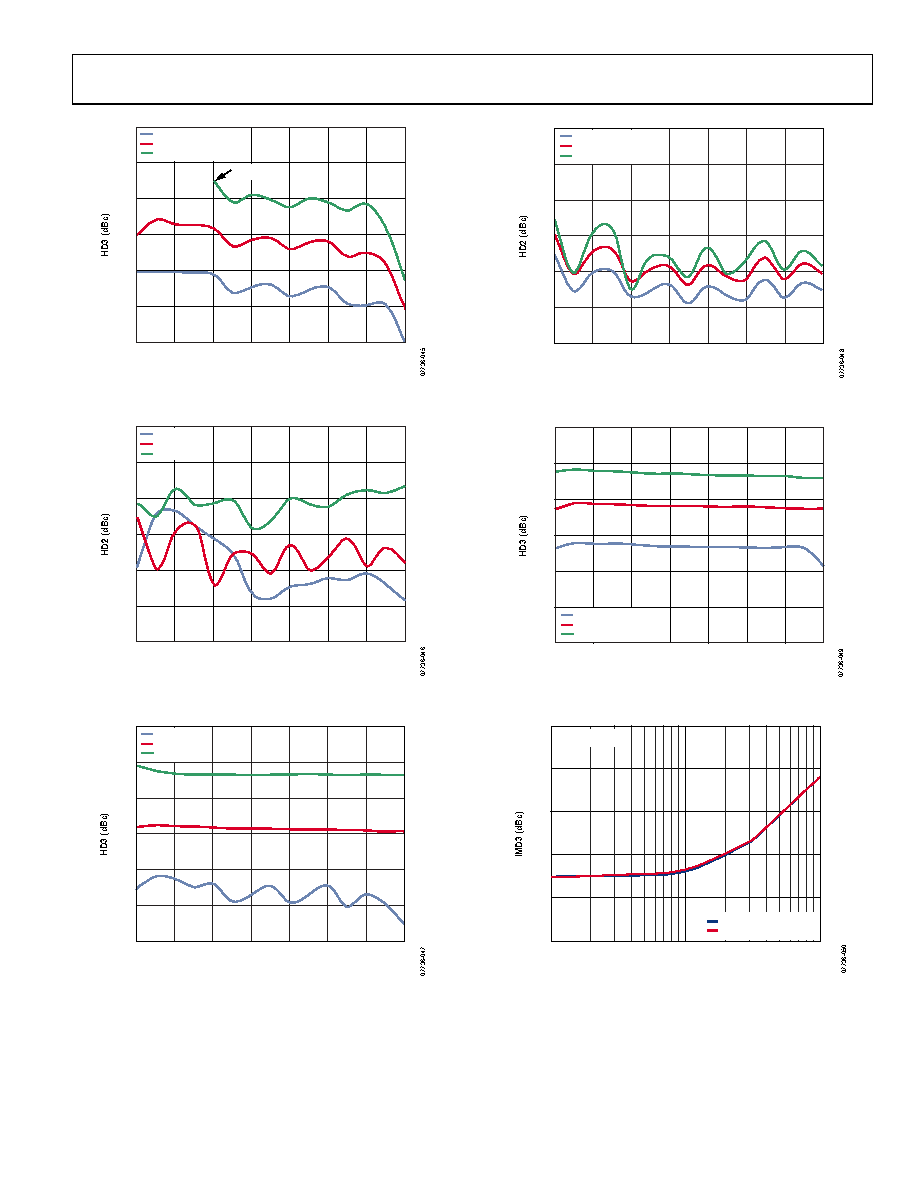

15 / 40 page  Data Sheet AD8264 Rev. B | Page 15 of 40 −90 −60 −50 −80 −70 −30 −40 VGAIN (V) 0.7 0.5 0.3 0.1 –0.1 –0.3 –0.5 –0.7 VGAx = 0.5V p-p VGAx = 1V p-p VGAx = 2V p-p INPUT LIMITED Figure 45. HD3 vs. Amplitude to VGAx −90 −60 −50 −80 −70 −30 −40 VGAIN (V) 0.7 0.5 0.3 0.1 –0.1 –0.3 –0.5 –0.7 1MHz 10MHz 35MHz Figure 46. HD2 vs. VGAIN vs. Frequency to Differential Output VGAIN (V) 0.7 0.5 0.3 0.1 –0.1 –0.3 –0.5 –0.7 −90 −45 −30 −75 −60 0 −15 1MHz 10MHz 35MHz Figure 47. HD3 vs. VGAIN vs. Frequency to Differential Output VGAIN (V) 0.7 0.5 0.3 0.1 –0.1 –0.3 –0.5 –0.7 −90 −60 −50 −80 −70 −30 −40 VOUT = 0.5V p-p VOUT = 1V p-p VOUT = 2V p-p Figure 48. HD2 vs. Amplitude to Differential Output −90 −60 −50 −80 −70 VOUT = 0.5V p-p VOUT = 1V p-p VOUT = 2V p-p −30 −40 VGAIN (V) 0.7 0.5 0.3 0.1 –0.1 –0.3 –0.5 –0.7 Figure 49. HD3 vs. Amplitude to Differential Output 0 10M FREQUENCY (Hz) 1M 100M LOW TONE, f – 50kHz HIGH TONE, f + 50kHz −20 −40 −60 −80 −100 VOUT = 1V p-p Figure 50. IMD3 vs. Frequency to VGAx |
|
