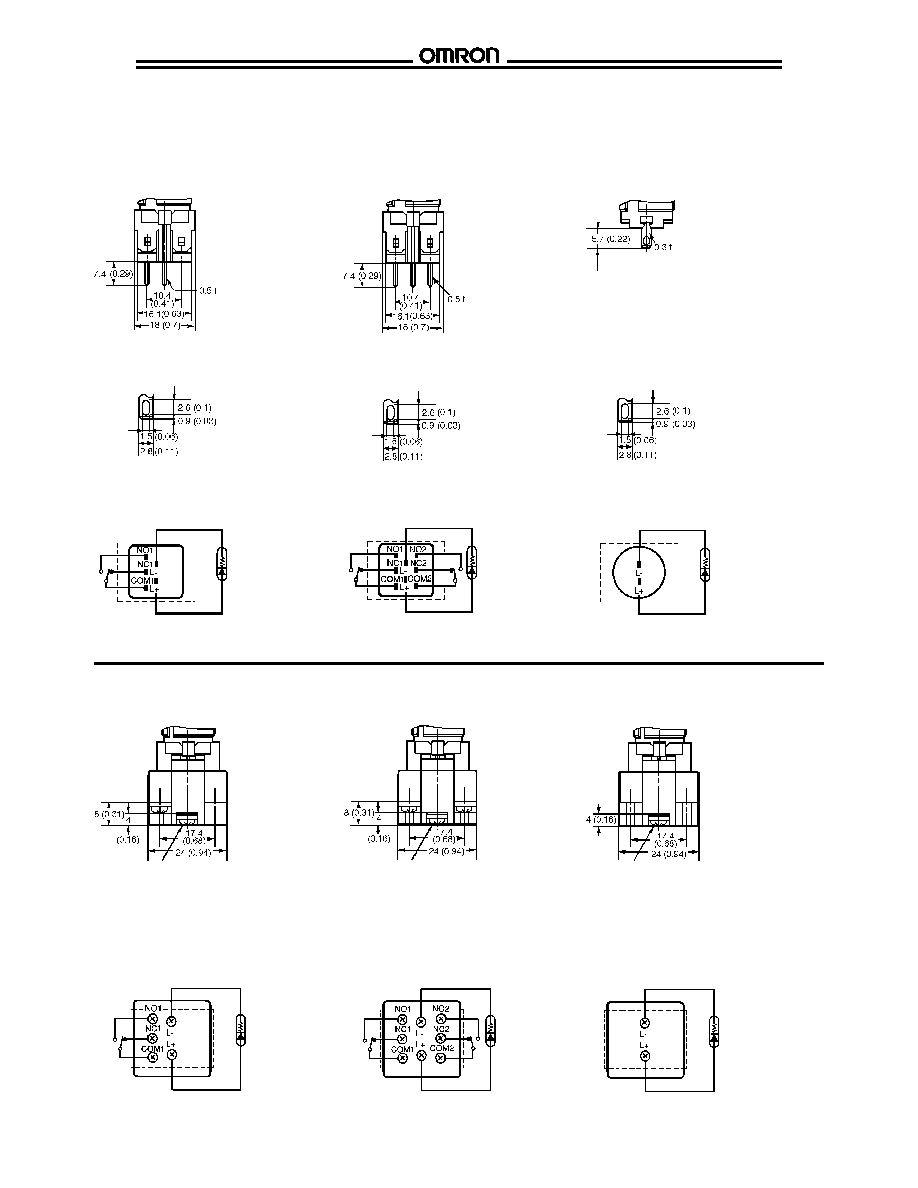

A3G
A3G
s SOLDER TERMINALS
SPDT switch
DPDT switch
Indicator
Lighted type
Lighted type
Display lamp
Dimensions of terminal holes
Dimensions of terminal holes
Dimensions of terminal holes
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
s SCREW TERMINALS
Terminal arrangement
Terminal arrangement
Terminal arrangement
(bottom view)
(bottom view)
(bottom view)
SPDT switch
DPDT switch
Indicator
Five, M3 x 6 Phillips
Eight, M3 x 6 Phillips
Two, M3 x 6 Phillips
screws with washers
screws with washers
screws with washers
Unit: mm (inch)
