EV4603-S-00A – EVB DESCRIPTION

EV4603ES-00A Rev.1.0

www.MonolithicPower.com

2

4/12/2012

MPS Proprietary Information. Patent Protected. Unauthorized Photocopy and Duplication Prohibited.

© 2012 MPS. All Rights Reserved.

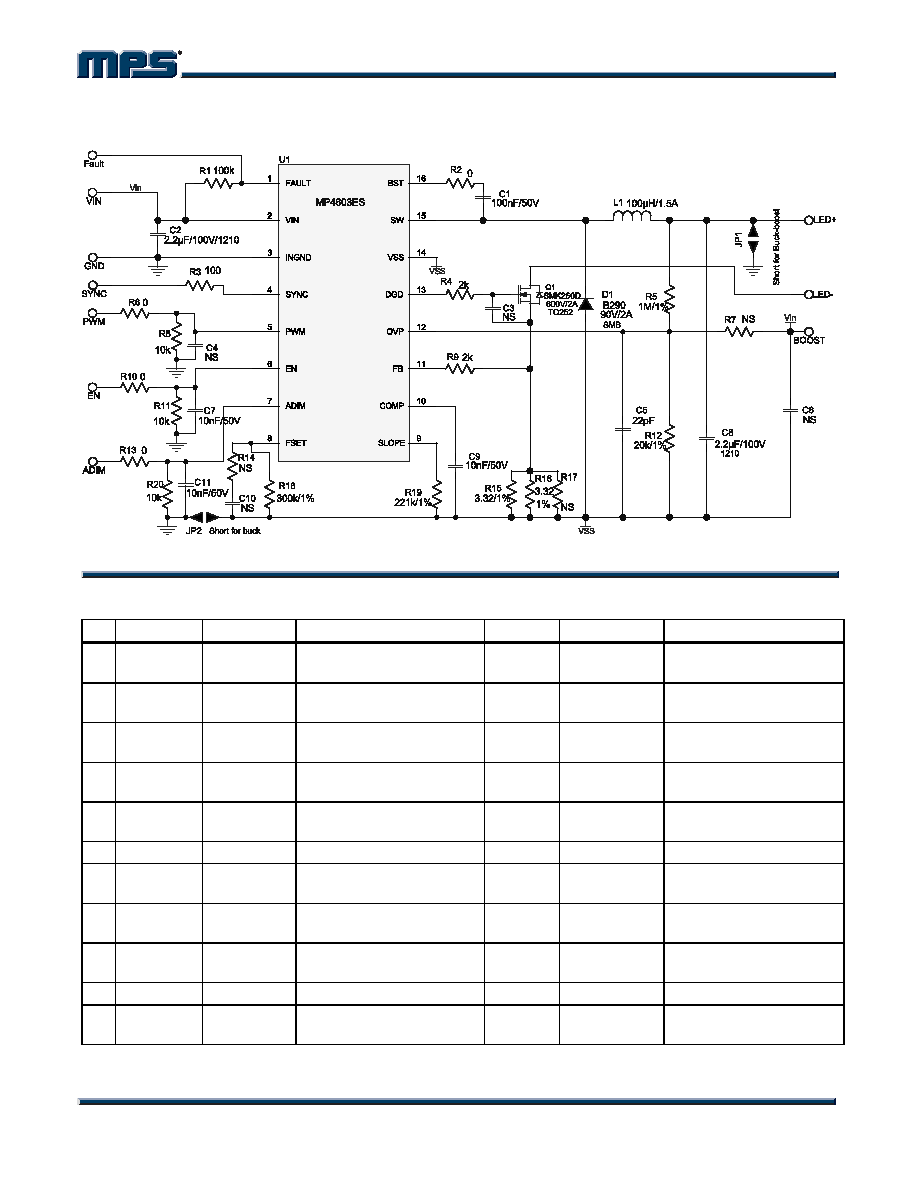

EVALUATION BOARD SCHEMATIC

EV4603-S-00A BILL OF MATERIALS

Qty

Ref

Value

Description

Package Manufacturer Part Number

1

C1

100nF

Ceramic

Capacitor;50V;X7R;0603

0603

muRata

GRM188R71H103KA01D

2

C2, C8

2.2μF

Ceramic

Capacitor;100V;X7R;1210

1210

muRata

GRM32ER72A225KA35L

4

C3, C4,

C6, C10

NS

1

C5

22pF

Ceramic

Capacitor;50V;COG;0603

0603

muRata

GRM1885C1H220JA01D

3

C7, C9,

C11

10nF

Ceramic

Capacitor;50V;X7R;0603

0603

muRata

GRM188R71H104KA93D

1

D1

B290

Schottky Diode;90V;2A

SMB

Diodes

B290

3

JP3, JP4,

JP5

Jump Wire Jump Wire

Jump Wire

1

L1

100μH

Inductor;100uH;250mOhm

;1.5A

SMD

Wurth

7447715101

1

Q1

SMK0260D

N-Channel Mosfet;600V,

2A

DPAK(T

O-252)

AUK

SMK0260D

1

R1

100k

Film Resistor;1%

0603

Yageo

RC0603FR-07100KL

4

R2, R6,

R10, R13

0

Film Resistor;5%

0603

Yageo

RC0603JR-070RL
