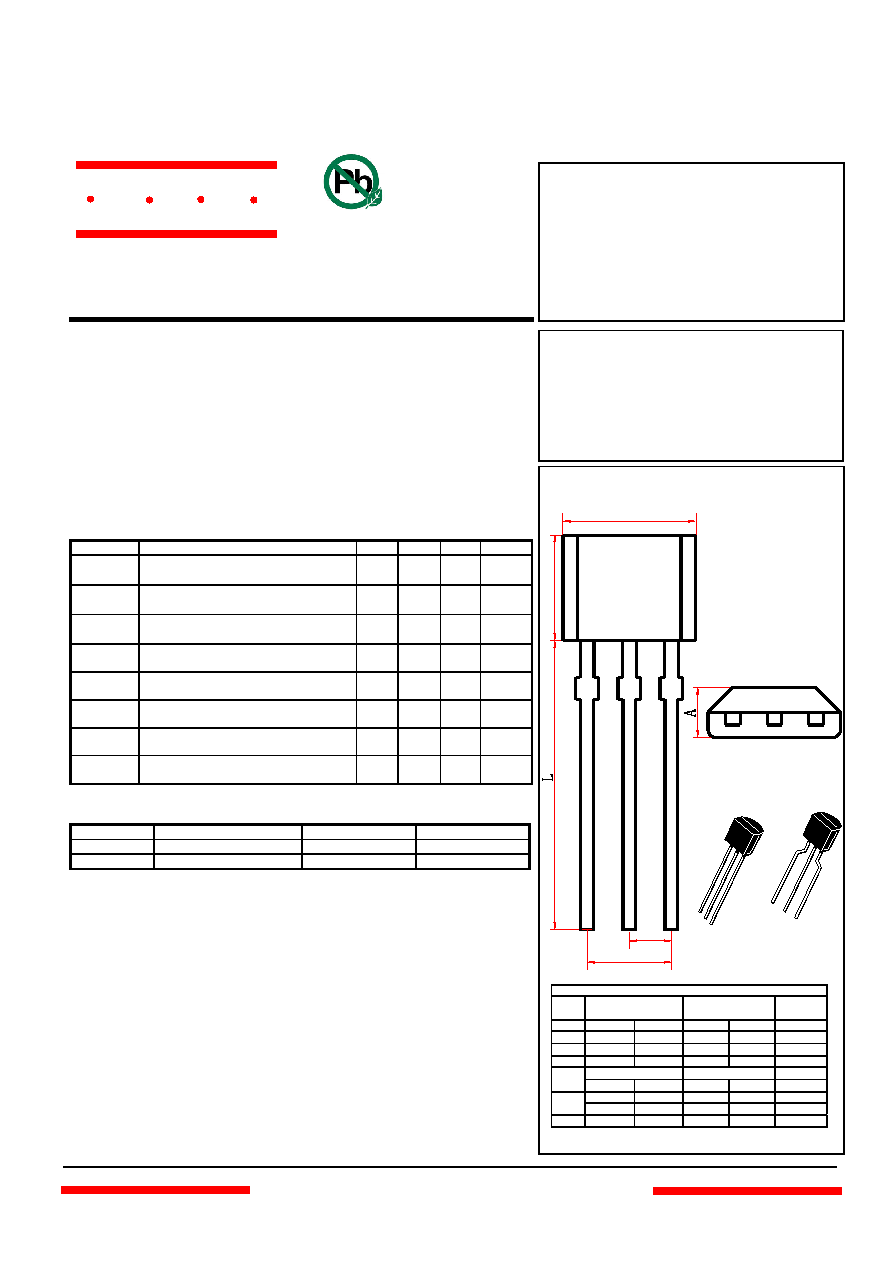

2SC4115S-R datasheet(1/2 Pages) MCC

номер детали	2SC4115S-R

подробное описание детали	NPN Plastic-Encapsulate Transistors

PDF	2 Pages

Scroll/Zoom	100%

производитель	MCC [Micro Commercial Components]

домашняя страница	http://www.mccsemi.com

Logo

1 / 2 page

NPN

Plastic-Encapsulate

Transistors

Features

•

Power dissipation: PCM = 0.3W(Tamb=25 )

•

Collector current: ICM = 3A

•

Collector-base voltage: V(BR)CBO = 40V

•

Operating and storage junction temperature range

TJ, Tstg: -55

to + 150

Electrical Characteristics @ 25

Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Unit

VCEO

Collector-Emitter Voltage

(IC=-50

A, IE=0)

20

---

V

VCBO

Collector-Base Voltage

(IC=-1

A, IB=0)

40

---

V

VEBO

Emitter-Base Voltage

(IE=-50

A, IC=0)

6.0

---

V

ICBO

Collector cut-off Current

(VCB=-20V, IE=0)

---

0.1

A

IEBO

Emitter cut-off Current

(VEB=-5V, IC=0)

---

0.1

A

hFE

DC current gain

(VCE=-2V, IC=-0.1A)

120

---

560

---

VCE(sat)

Collector-Emitter Saturation Voltage

(IC=-2A, IB=-0.1A)

---

0.5

V

fT

Transition Frequency

(VCE=2.0Vdc, IC=0.5Adc)

200

---

MHz

Measured Using Pulse Current

CLASSIFICATION OF hFE

Rank

Q

R

S

Range

120-270

180-390

270-560

Marking

C4115

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

Revision:

D

20

13/01/01

TM

Micro Commercial Components

2SC4115S-Q

2SC4115S-R

2SC4115S-S

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

www.mccsemi.com

1 of 2

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisture Sensitivity Level 1

TO-92S

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.056

.064

1.42

1.62

B

.154

.161

3.90

4.10

C

.120

.128

3.05

3.25

C

D

E

DIMENSIONS

1

2

3

1

2

3

BENT LEAD

STRAIGHT LEAD

BULK PACK

AMMO PACK

.050

1.27

D

.086

.110

2.20

2.80

E

.096

.104

2.44

2.64

.173

.220

4.40

5.60

L

.594

.610

15.10

15.50

* For ammo packing detailed specification, click here to visit our website

of product packaging for details.

Straight Lead

Bent Lead

Straight Lead

Bent Lead

1. EMITTER

2. COLLECTOR

3. BASE

Halogen free available upon request by adding suffix "-HF"

•
