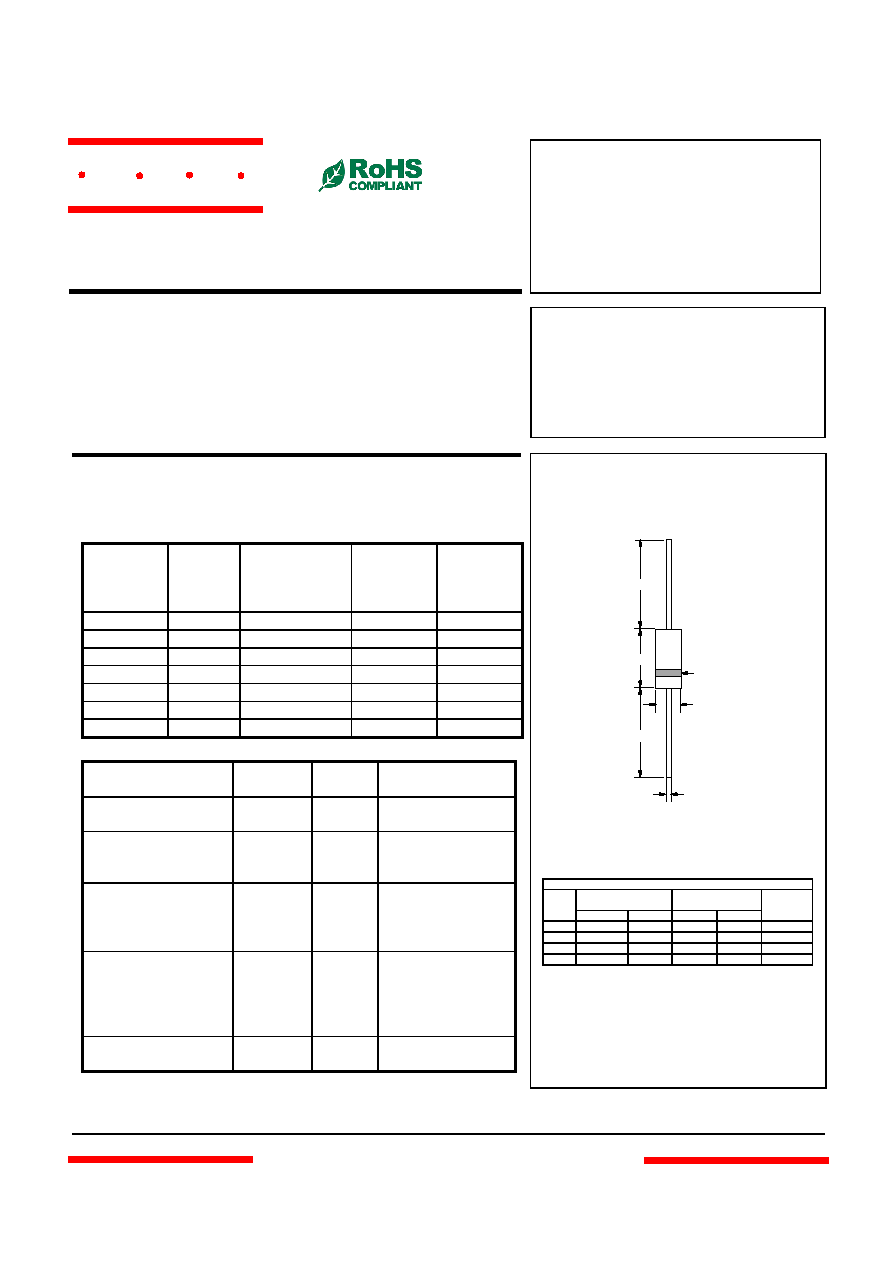

1 / 4 page

FR151S

THRU

FR157S

1.5 Amp Fast

Recovery Rectifier

50 to 1000 Volts

Features

•

Fast Switching Speed For High Efficiency

•

High Current Capability

Maximum Ratings

•

Operating Temperature: -55

°C to +150°C

•

Storage Temperature: -55

°C to +150°C

MCC

Catalog

Number

Device

Marking

Maximum

Recurrent

Peak Reverse

Voltage

Maximum

RMS

Voltage

Maximum

DC

Blocking

Voltage

FR151S

50V

35V

50V

FR152S

100V

70V

100V

FR153S

200V

140V

200V

FR154S

400V

280V

400V

FR155S

600V

420V

600V

FR156S

800V

560V

800V

FR157S

1000V

700V

1000V

Electrical Characteristics @ 25

°C Unless Otherwise Specified

Average Forward

Current

IF(AV)

1.5 A

TA = 55

°C

Peak Forward Surge

Current

IFSM

50A

8.3ms, half sine

Maximum

Instantaneous

Forward Voltage

VF

1.3V

IFM = 1.5A;

TA = 25

°C

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

IR

5.0

µA

100

µA

TA = 25

°C

TA = 100

°C

Maximum Reverse

Recovery Time

FR151S-154S

FR155S

FR156S-157S

Trr

150ns

250ns

500ns

IF=0.5A, IR=1.0A,

Irr=0.25A

Typical Junction

Capacitance

CJ

20pF

Measured at

1.0MHz, VR=4.0V

*Pulse Test: Pulse Width 300

µsec, Duty Cycle 1%

DO-41

omponents

20736 Marilla Street Chatsworth

!"#

$% !"#

MCC

Revision:

B

20

13/01/01

TM

Micro Commercial Components

FR151S

FR152S

FR153S

FR154S

FR155S

FR156S

FR157S

www.mccsemi.com

1 of 4

DIMENSIONS

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.166

.205

4.10

5.20

B

.080

.107

2.00

2.70

C

.028

.034

.70

.90

D

1.000

---

25.40

---

A

B

C

D

Cathode

Mark

•

Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

Note:

1. High Temperature Solder Exemption Applied, see EU Directive Annex 7.

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisture Sensitivity Level 1

•

Halogen free available upon request by adding suffix "-HF"
