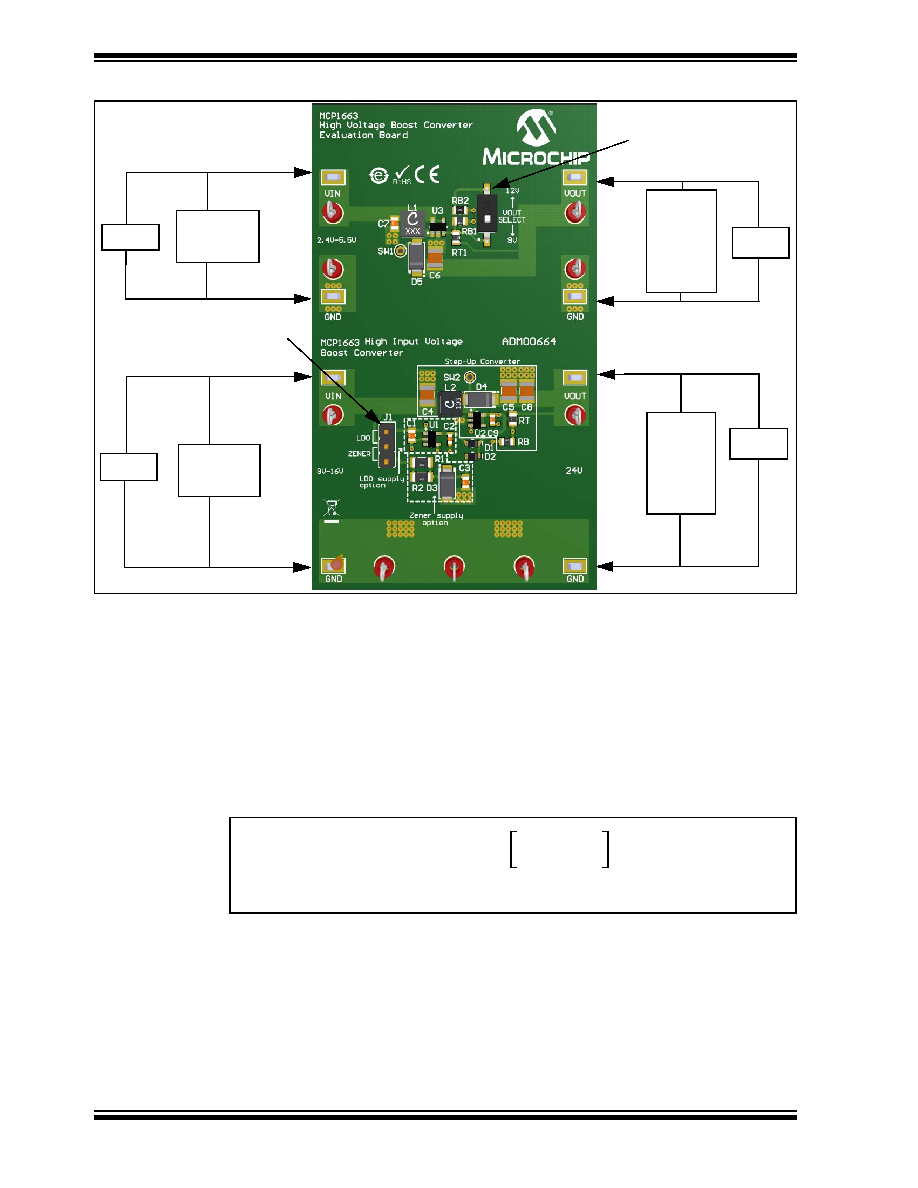

18 / 32 page  MCP1663 9V/12V/24V Output Boost Regulator Evaluation Board User’s Guide DS50002364A-page 18 2015 Microchip Technology Inc. FIGURE 2-2: MCP1663 9V/12V/24V Output Boost Regulator Evaluation Board Setup. 2.2.1.3 ADJUSTABLE VOUT SETTING The top circuit comes with the output value set to 9V and 12V (VOUT selective using a switch). If a different output is desired, set the switch in the OFF state (button down) and recalculate the resistor divider (RT1 and RB1) using Equation 2-1. The Bottom circuit comes with VOUT set to 24V. As in the previous case, the same equation can be used to calculate RT and RB and set another output voltage. Note that VIN must be lower than VOUT. EQUATION 2-1: POWER + SUPPLY - POWER + SUPPLY - V-meter V-meter V-meter + Electronic Load/ Resistive Load - + Electronic Load/ Resistive Load - V-meter + Electronic Load/ Resistive Load - BIAS Supply Option Select VOUT Select Switch RT RB V OUT V FB ------------- 1 – = Where : VFB = 1.227V |
|
