M24LR64E-R
RF electrical parameters
Doc ID 022712 Rev 3
127/140

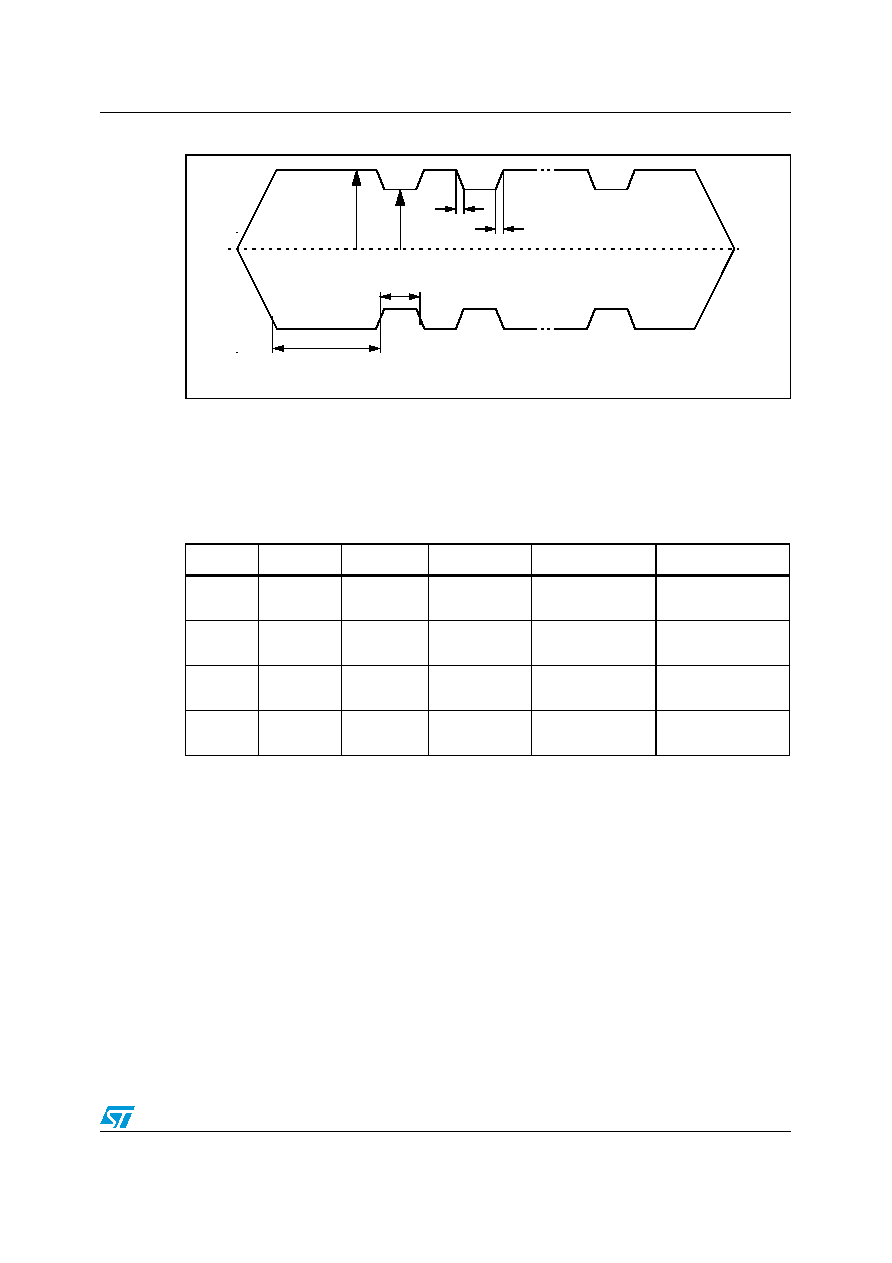

Figure 81.
ASK modulated signal
Table 126 below summarizes respectively the minimum AC0-AC1 input power level PAC0-
AC1_min required for the Energy harvesting mode, the corresponding maximum current
consumption Isink_max and variation of the analog voltage Vout for the various Energy
harvesting fan-out configurations defined by bits b0 and b1 of the Configuration byte.
Table 126.
Energy harvesting(1) (2)
1.
Characterized only.
2.
Valid from -40 °C to +85 °C.
Range
Hmin
(3)
3.
Hmin characterized according to ISO10373-7 test method.
Pmin
(4)
4.
Pmin calculated from DC measurements.
We recommend to choose the Energy Harvesting Range in respect with the maximum
current requested by the application to avoid any disabling of Energy
Harvesting mode (for example, choose Range 01 for a max consumption of
2mA).
Vout@I=0
Vout@Isink_max
Isink_max@Pmin
00
3.5 A/m
100 mW
2.7 V min
4.5 V max
1.7 V
6 mA
01
2.4 A/m
60 mW
2.7 V min
4.5 V max
1.9 V
3 mA
10
1.6 A/m
30 mW
2.7 V min
4.5 V max
2.1 V
1 mA
11
1.0 A/m
16 mW
2.7 V min
4.5 V max
2.3 V
300 µA
MS19784V1
AB
tRFF
tRFR
tRFSBL
tMIN CD
fCC
