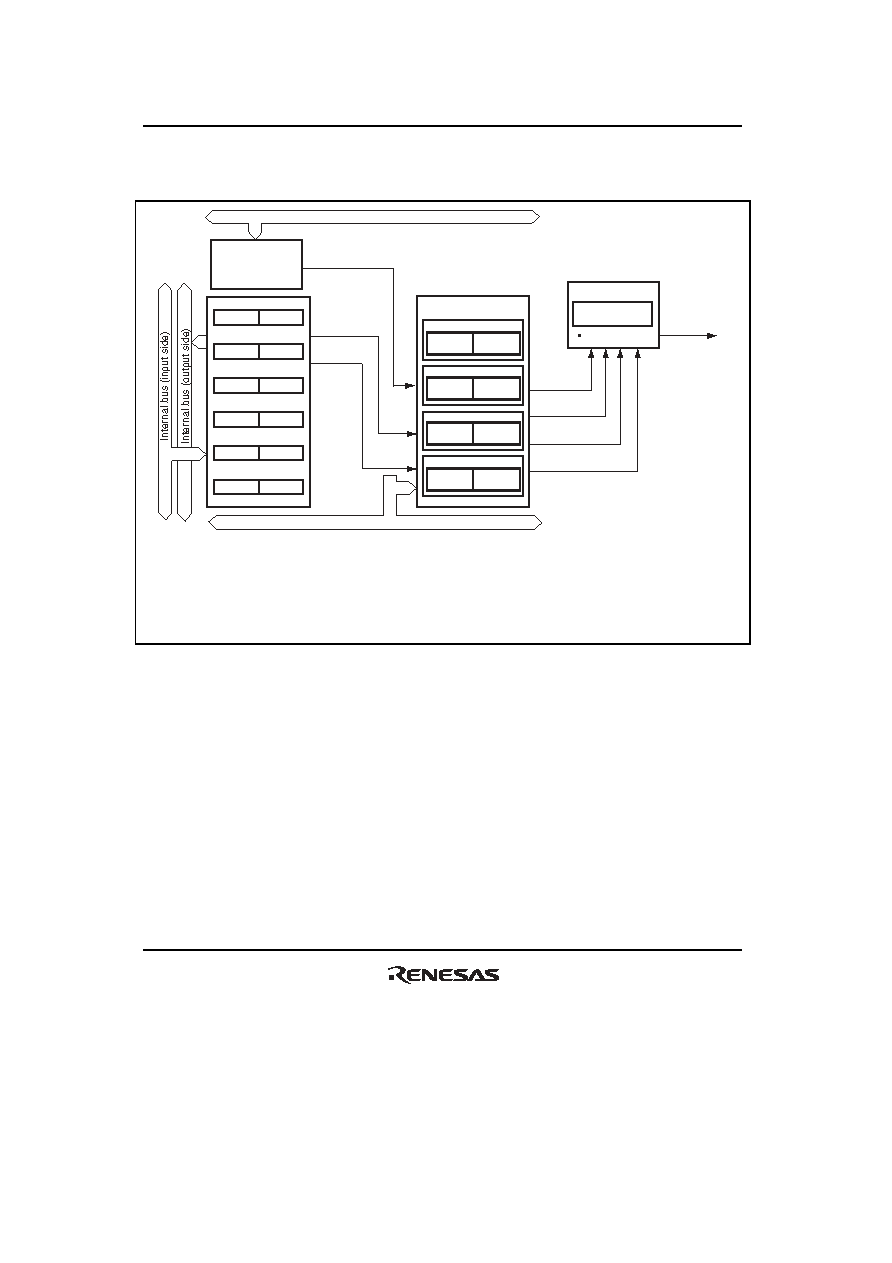

Section 8 User Break Controller (UBC)
Rev. 2.00 Sep. 24, 2008 Page 172 of 1468
REJ09B0412-0200
8.2
Block Diagram
A ch PC
Condition match
B ch PC
Condition match
C ch PC
Condition match
D ch PC
Condition match
UBC break
interrupt request
Break control
Mode control
Sequential control
Break
address
Break
control
Instruction
execution pointer
CPU status
Instruction execution pointer
BARAH
BARAL
BARBH
BARBL
BARCH
BARCL
BARDH
BARDL
BRCRA
BRCRB
BRCRC
BRCRD
PC break control
Address
comparator
A ch
Condition
match
determination
Condition
match
determination
Condition
match
determination
Condition
match
determination
Address
comparator
B ch
Address
comparator
C ch
Address
comparator
D ch
Flag set control
BARAH, BARAL:
BARBH, BARBL:
BARCH, BARCL:
BARDH, BARDL:
BRCRA:
BRCRB:
BRCRC:
BRCRD:
Break address register A
Break address register B
Break address register C
Break address register D
Break control register A
Break control register B
Break control register C
Break control register D
[Legend]
Figure 8.1 Block Diagram of UBC
