Section 23 Power-Down Modes
Rev.1.00 Jun. 07, 2006 Page 988 of 1102
REJ09B0294-0100
23.8.4
Timing Sequence at Power-On

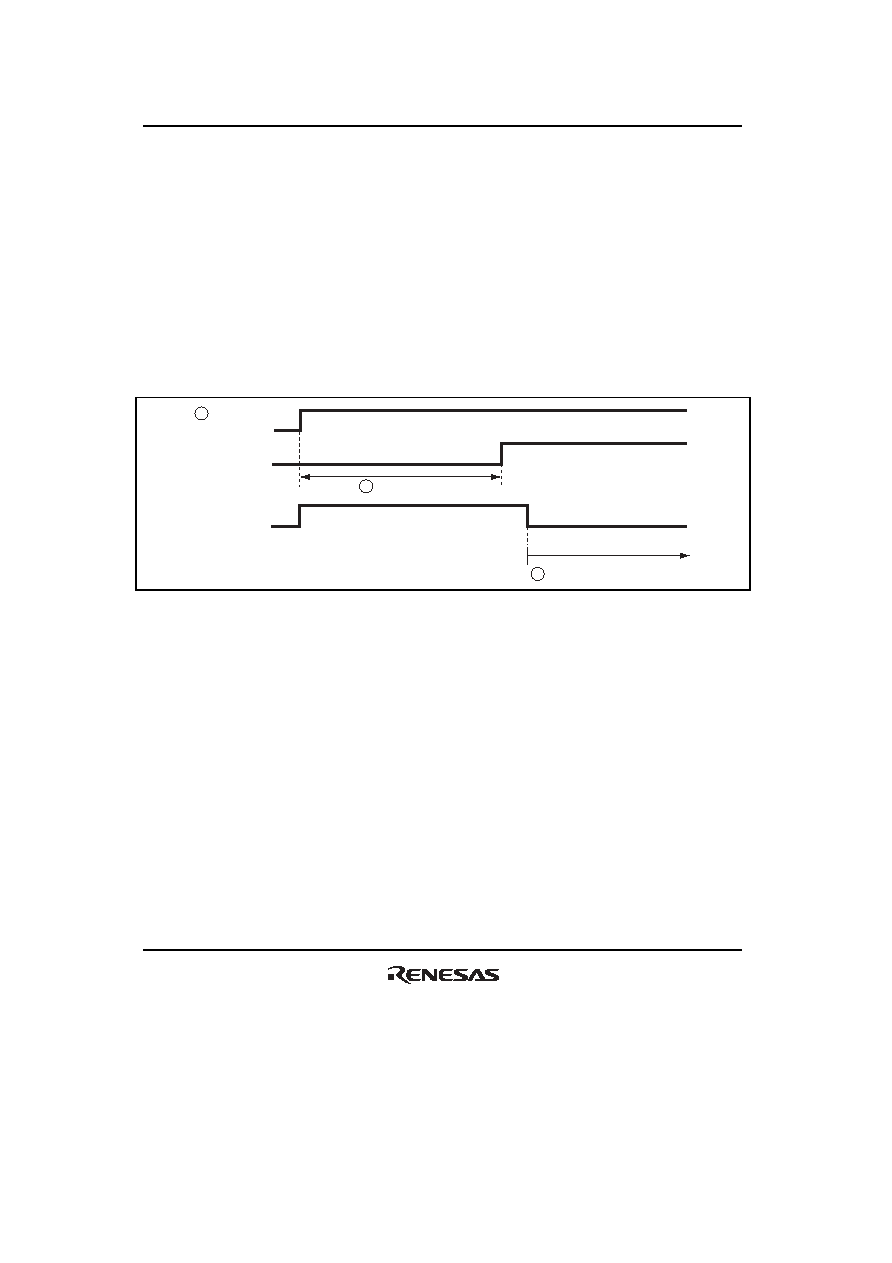

Figure 23.4 shows the timing sequence at power-on.
At power-on, the
RES pin must be driven low with the STBY pin driven high for a given time in
order to clear the reset state.
To enter hardware standby mode immediately after power-on, drive the
STBY pin low after
exiting the reset state.
For details on clearing hardware standby mode, see section 23.8.3, Hardware Standby Mode
Timing.
Power supply
RES
STBY
Reset state
Hardware standby mode
1
2
3
Figure 23.4 Timing Sequence at Power-On
