Section 14 Watchdog Timer (WDT)
Rev.1.00 Jun. 07, 2006 Page 647 of 1102
REJ09B0294-0100
TCNT value
H'00
Time
H'FF
WT/
IT = 1
TME = 1
H'00 written
to TCNT
WT/
IT = 1
TME = 1
H'00 written
to TCNT
133 states*2
519 states
WDTOVF signal
Internal reset signal*1
Notes: 1. If TCNT overflows when the RSTE bit is set to 1, an internal reset signal is generated.
2. 130 states when the RSTE bit is cleared to 0.
Overflow
WDTOVF and
internal reset are
generated
WOVF = 1

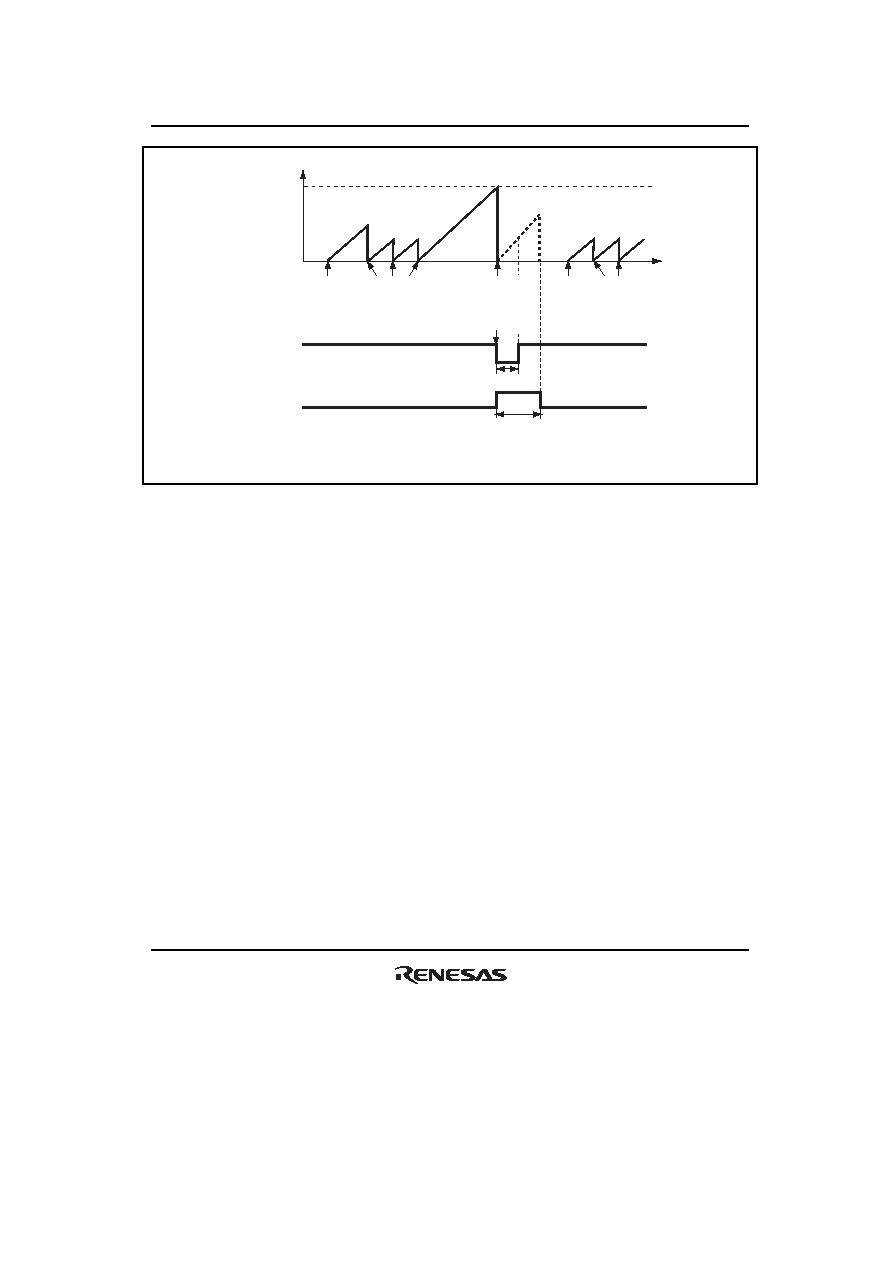

Figure 14.2 Operation in Watchdog Timer Mode
