Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 568 of 1102
REJ09B0294-0100
(4) Timing for Counter Clearing by Compare Match/Input Capture

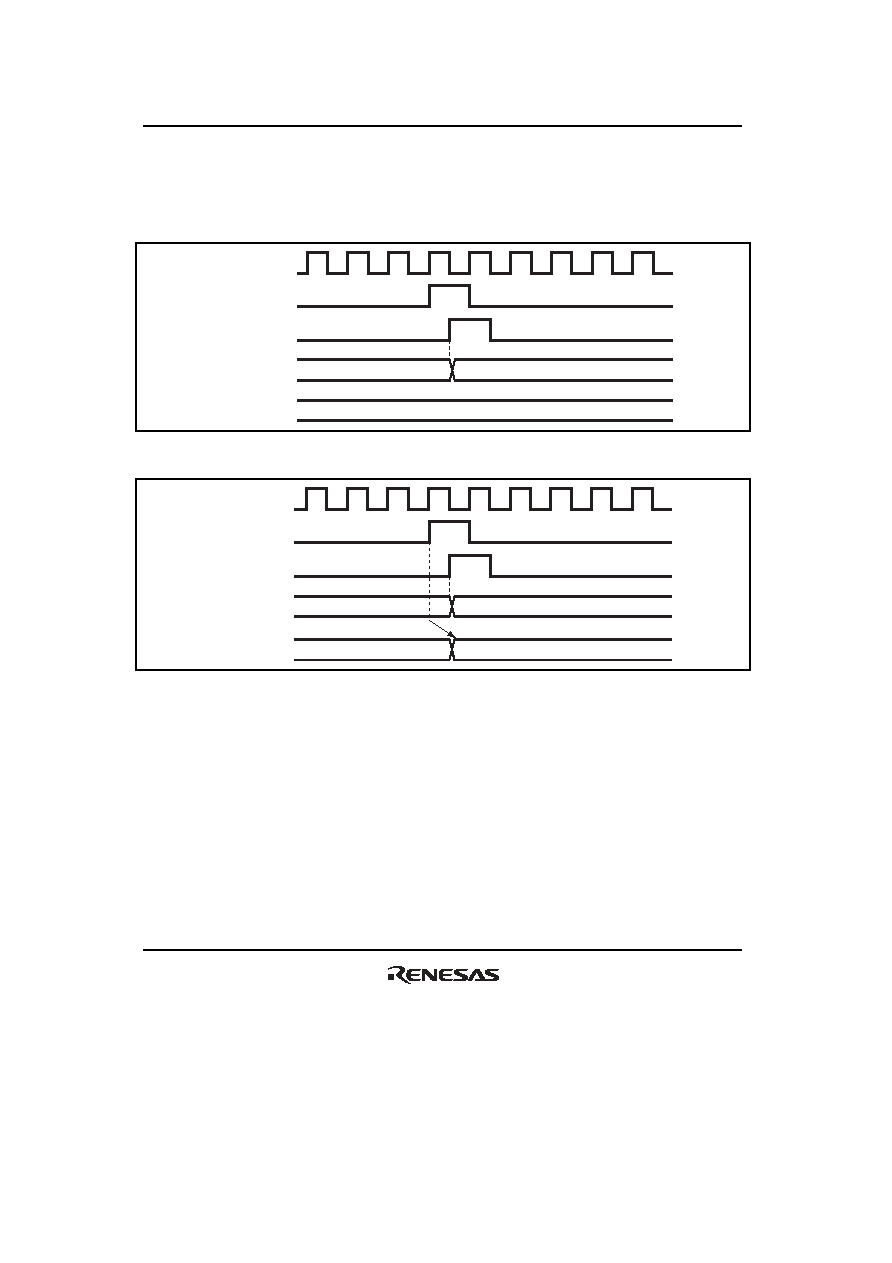

Figure 10.34 shows the timing when counter clearing by compare match occurrence is specified,
and figure 10.35 shows the timing when counter clearing by input capture occurrence is specified.
P
φ
TCNT
N
TGR
Compare match
signal
Counter clear
signal
H'0000
N
Figure 10.34 Counter Clear Timing (Compare Match)
TGR
Counter clear
signal
H'0000
P
φ
TCNT
N
Input capture
signal
N
Figure 10.35 Counter Clear Timing (Input Capture)
